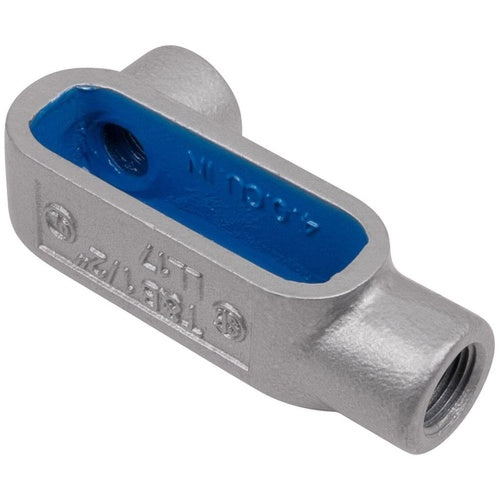

Ocal LL58-4X-G Conduit Body Ll Form-8, UL-4X 1-1/2" Gray

Overview

Ocal LL58-4X-G Conduit Body Ll Form-8, UL-4X 1-1/2" Gray

Product Specifications

• UPC: 70450802502
• Hub Size: 1-1/2 Inch
• Size: 9.13 Inch Length x 2.78 Inch Width x 4 Inch Height
• Installation: Screw, Threaded
• Material: PVC Coated Cast Iron, 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior, Stainless Steel Screw
• Form Type: Form 8
• Approval: UL, CSA
• Used On: Conduit
• Additional Information: Color Dark Gray; Enclosure Rating NEMA 4X; Includes O-Ring Seal, Cover and Screw
• Catalog Number: LL58-4X-G
• Brand Name: Ocal
• Model: LL
• Access Opening: Left Side
• Configuration: LL
• Cover Type: PVC Coated Cast Iron, 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: PVC COATED CONDUIT BODY, LL SHAPE, FORM 8 UL-4X, SIZE 1-1/2 INCH/41 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: PVC Coated Cast Iron, 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior, Stainless Steel Screw Material; 9.13 Inch Length X 2.78 Inch Width X 4 Inch Height Size; Conduit Used on; 1-1/2 Inch Hub Size; Screw, Threaded Installation; LL Configuration; 2 Hub(S); UL, CSA Approval; PVC Coated Cast Iron, 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior Cover Type; 90 Degree Hub Location; Form 8 Form Type; Left Side Access Opening; OCAL-BLUE[R] Brand; Color Dark Gray; Enclosure Rating NEMA 4X; Includes O-ring Seal, Cover and Screw; LL Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS OCAL
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508025021
• SKU Name: ocal ll584xg

Resources

• Manufacturer Spec Sheet
