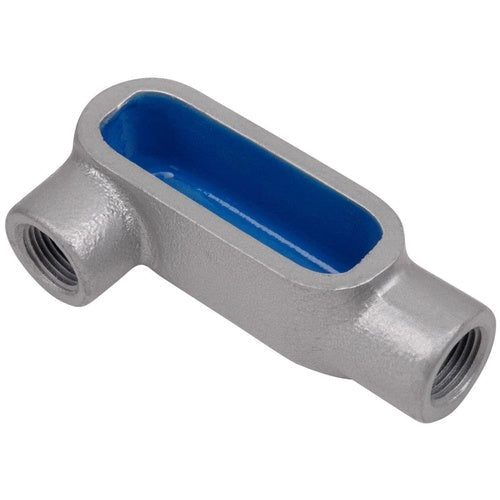

Ocal LR28-4X-G Conduit Body LR-Shape Form-8, UL-4X 3/4" Gray

Overview

Ocal LR28-4X-G Conduit Body LR-Shape Form-8, UL-4X 3/4" Gray

Product Specifications

• UPC: 70450802518
• Hub Size: 3/4 Inch
• Size: 5.56 Inch Length x 1.69 Inch Width x 2.31 Inch Height
• Installation: Screw, Threaded
• Material: Gray PVC Coated Cast Iron, 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior, Stainless Steel Screw
• Form Type: Form 8
• Approval: UL, CSA
• Used On: Conduit
• Additional Information: Enclosure Rating NEMA 4X; Includes O-Ring Seal, Cover and Screw
• Catalog Number: LR28-4X-G
• Brand Name: Ocal
• Model: LR
• Access Opening: Right Side
• Configuration: LR
• Cover Type: PVC Coated Cast Iron, 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: PVC COATED CONDUIT BODY, LR SHAPE, FORM 8 UL-4X, SIZE 3/4 INCH/21 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Gray PVC Coated Cast Iron, 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior, Stainless Steel Screw Material; 5.56 Inch Length X 1.69 Inch Width X 2.31 Inch Height Size; Conduit Used on; 3/4 Inch Hub Size; Screw, Threaded Installation; LR Configuration; 2 Hub(S); UL, CSA Approval; PVC Coated Cast Iron, 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior Cover Type; 90 Degree Hub Location; Form 8 Form Type; Right Side Access Opening; OCAL-BLUE[R] Brand; Enclosure Rating NEMA 4X; Includes O-ring Seal, Cover and Screw; LR Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS OCAL
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508025182
• SKU Name: ocal lr284xg

Resources

• Manufacturer Spec Sheet
