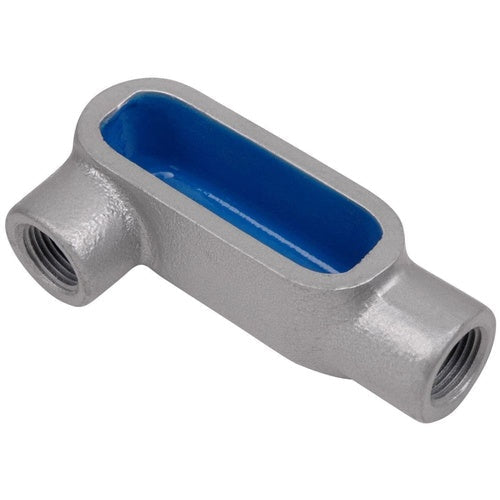

Ocal LR37-G Conduit Body LR-Shape Form-7, 1" Dark-Gray

Overview

Ocal LR37-G Conduit Body LR-Shape Form-7, 1" Dark-Gray

Product Specifications

• UPC: 70450839395
• Hub Size: 1 Inch
• Size: 6 Inch Length x 2.6 Inch Width x 1.9 Inch Height
• Installation: Screw, Threaded
• Material: 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior Gray Iron Alloy, Stainless Steel Screw
• Form Type: Form 7
• Approval: UL E2969, CSA
• Used On: Rigid Conduit
• Additional Information: Color Dark Gray; Includes Cover, Screw
• Catalog Number: LR37-G
• Brand Name: Ocal
• Model: LR
• Access Opening: Right Side
• Configuration: LR
• Cover Type: 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior Gray Iron Alloy
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: PVC COATED CONDUIT BODY, LR SHAPE, FORM 7, SIZE 1 INCH/27 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior Gray Iron Alloy, Stainless Steel Screw Material; 6 Inch Length X 2.6 Inch Width X 1.9 Inch Height Size; Rigid Conduit Used on; 1 Inch Hub Size; Screw, Threaded Installation; LR Configuration; 2 Hub(S); UL E2969, CSA Approval; 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior Gray Iron Alloy Cover Type; 90 Degree Hub Location; Form 7 Form Type; Right Side Access Opening; OCAL-BLUE[R] Brand; Color Dark Gray; Includes Cover, Screw; LR Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS OCAL
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508393953
• SKU Name: ocal lr37g

Resources

• Manufacturer Spec Sheet
