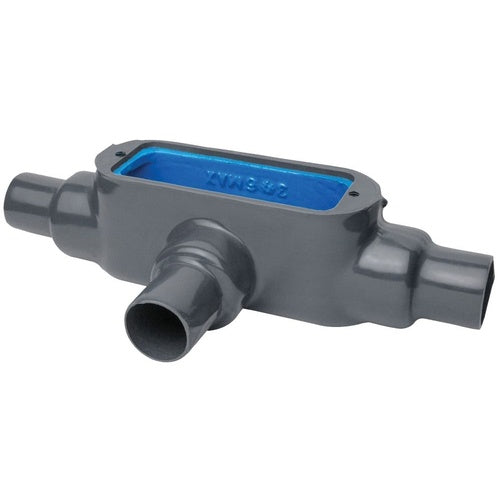

Ocal T448-4X-G Conduit Body T Form-8, UL-4X 1-1/4" Gray

Overview

Ocal T448-4X-G Conduit Body T Form-8, UL-4X 1-1/4" Gray

Product Specifications

• UPC: 70450802570
• Installation: Screw, Threaded
• Material: 0.002 Inch Blue Urethane Coated Interior/0.04 Inch Dark Gray PVC Coated Exterior Cast Iron (Body), Stainless Steel (Screw)
• Form Type: Form 8
• Approval: UL (Canada and US), CSA
• Used On: Rigid Conduit
• Additional Information: Enclosure Type NEMA 4X; Capacity 24 Cubic Inch
• Catalog Number: T448-4X-G
• Access Opening: Side
• Configuration: T
• Cover Type: PVC Coated Cast Iron
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 1-1/4 Inch
• Size: 2.63 Inch Width
• Catalog Description: PVC COATED CONDUIT BODY, T SHAPE, FORM 8 UL-4X, SIZE 1-1/4 INCH/35 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: 0.002 Inch Blue Urethane Coated Interior/0.04 Inch Dark Gray PVC Coated Exterior Cast Iron (Body), Stainless Steel (Screw) Material; 2.63 Inch Width Size; Rigid Conduit Used on; 1-1/4 Inch Hub Size; Screw, Threaded Installation; T Configuration; 3 Hub(S); UL (Canada and Us), CSA Approval; PVC Coated Cast Iron Cover Type; Tee Hub Location; Form 8 Form Type; Side Access Opening; OCAL-BLUE[R] Brand; Enclosure Type NEMA 4X; Capacity 24 Cubic Inch
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508025700
• SKU Name: ocal t4484xg
