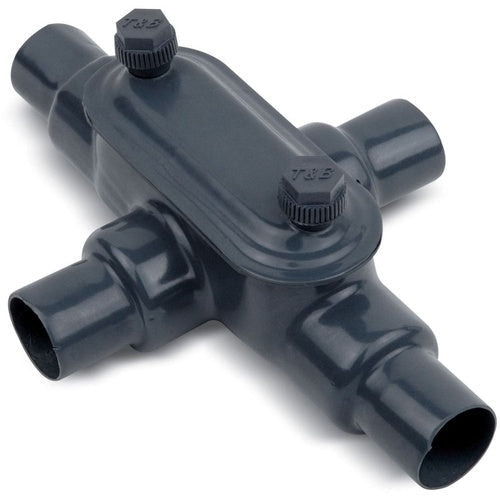

Ocal X38-4X-G Conduit Body X Form-8, UL-4X 1" Gray

Overview

Ocal X38-4X-G Conduit Body X Form-8, UL-4X 1" Gray

Product Specifications

• UPC: 70450802632
• Size: 3.5 Inch H
• Installation: Screw, Threaded
• Material: 0.002 Inch Blue Urethane Coated Cast Iron Body Interior, 0.04 Inch Dark Gray PVC Coated Cast Iron Body Exterior, Stainless Steel Screw
• Form Type: Form 8
• Approval: UL, CSA
• Used On: Conduit
• Additional Information: Enclosure Type NEMA 4X; Capacity 15 Cu Inch
• Catalog Number: X38-4X-G
• Brand Name: OCAL-BLUE[R]
• Access Opening: Cross Side
• Configuration: X
• Cover Type: PVC Coated Cast Iron
• Hub Location: Cross
• Number Of Hubs: 4
• Hub Size: 1 Inch
• Catalog Description: PVC COATED CONDUIT BODY, X TYPE, FORM 8 UL-4X, SIZE 1 INCH/27 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: 0.002 Inch Blue Urethane Coated Cast Iron Body Interior, 0.04 Inch Dark Gray PVC Coated Cast Iron Body Exterior, Stainless Steel Screw Material; 3.5 Inch H Size; Conduit Used on; 1 Inch Hub Size; Screw, Threaded Installation; X Configuration; 4 Hub(S); UL, CSA Approval; PVC Coated Cast Iron Cover Type; Cross Hub Location; Form 8 Form Type; Cross Side Access Opening; OCAL-BLUE[R] Brand; Enclosure Type NEMA 4X; Capacity 15 Cu Inch
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508026325
• SKU Name: ocal x384xg

Resources

• Manufacturer Spec Sheet
