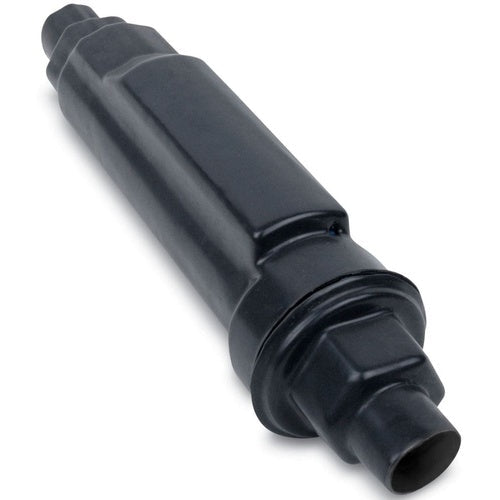

Ocal XJG104-G Expansion Coupling 4" Length 12.87" Gray

Overview

Ocal XJG104-G Expansion Coupling 4" Length 12.87" Gray

Product Specifications

• UPC: 70450841744
• Material: PVC Coated Malleable Iron Body, Tinned Copper Braid Bonding Jumper, PTFE/Synthetic Fiber Packing
• Approval: UL
• Used On: Rigid Conduit
• Additional Information: Color Dark Gray; Height 6.75 Inch
• Catalog Number: XJG104-G
• Model: XJG
• Trade Size: 4 Inch
• Diameter: 6.37 Inch
• Length: 12.87 Inch
• Maximum Movement: 4 Inch
• Constructional Feature: Corrosion Resistant
• Ground Type: Internally Grounded
• Catalog Description: PVC COATED XJG RIGID CONDUIT EXPANSION COUPLING WITH INTERNAL BONDING JUMPER, 4 INCH/103 METRIC, BODY IS MALLEABLE IRON WITH ZINC PLATING, INTERNAL BONDING JUMPER IS TINNED COPPER BRAID, PACKING PTFE/SYNTHETIC FIBER MATERIAL, 4 INCH/101.60 MILLIMETERS MOVEMENT, DIAMETER 6.37 INCH/161.80 MILLIMETERS, LENGTH 12.87 INCH/326.90 MILLIMETERS, HEIGHT 6.75 INCH/171.45 MILLIMETERS, GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: PVC Coated Malleable Iron Body, Tinned Copper Braid Bonding Jumper, Ptfe/Synthetic Fiber Packing Material; 12.87 Inch; Rigid Conduit Used on; 4 Inch Max. Movement; UL Approval; 6.37 Inch Diameter; Internally Grounded; 4 Inch Trade Size; Corrosion Resistant; Color Dark Gray; Height 6.75 Inch; XJG Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid/EMT Expansion/Deflection Joint
• Unspsc: 39131707
• UPC 12 Digit: 704508417444
• SKU Name: ocal xjg104g

Resources

• Manufacturer Spec Sheet
