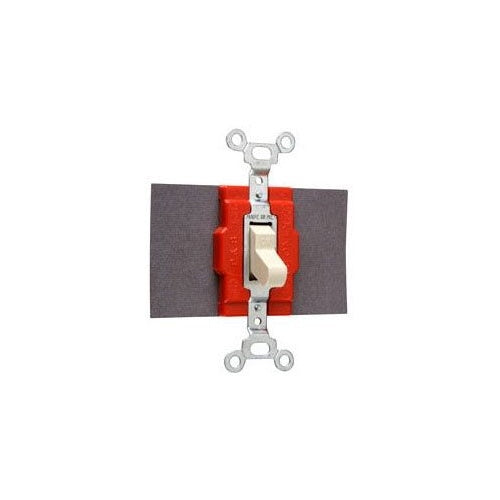

P&S 1226 Switch Manual Control 20A 120/277V (Dpdt)

Overview

P&S 1226 Switch Manual Control 20A 120/277V (Dpdt)

Product Specifications

• UPC: 78500712260
• Color: Brown
• Size: 1.5 Inch W x 1.469 Inch D x 3.281 Inch H
• Wiring: Side
• Wall Plate Included: No
• Application: Small Machine Tool, Pump, Fan, Air Conditioning Equipment
• Approval: UL, CSA
• Additional Information: Applicable Standard NEMA WD-1/WD-6
• Catalog Number: 1226
• Type: 3-Position, 2-Circuit
• Current Rating: 20 Ampere
• Voltage Rating: 120/277 VAC
• Power Rating: 1 HP at 120 VAC, 2 HP at 240 VAC
• Operation Type: Maintained
• Contact Configuration: DPDT
• Handle Type: Toggle
• Catalog Description: DOUBLE-POLE, DOUBLE-THROW SWITCH, 20A, 120/277V.
• Category: Manual Motor Switches & Accessories
• Full Technical Description: 3-Position, 2-Circuit Type; 1.5 Inch W X 1.469 Inch D X 3.281 Inch H Size; Brown Color; DPDT Contact Configuration; Maintained Operation Type; Toggle Handle Type; UL, CSA Approval; Small Machine Tool, Pump, Fan, Air Conditioning Equipment Application; 120/277 VAC Voltage Rating; 20 Ampere Current Rating; 1 HP at 120 VAC, 2 HP at 240 VAC Power Rating; Side Wiring; No Wall Plate Included; Applicable Standard NEMA Wd-1/Wd-6
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Double Throw Ac Switch
• Unspsc: 39122211
• UPC 12 Digit: 785007122602
• SKU Name: p&s 1226
