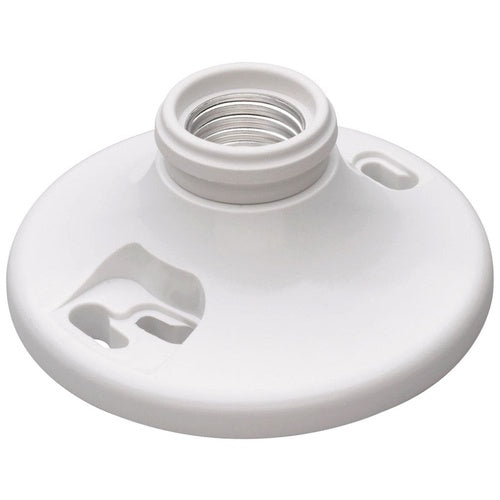

P&S 276-WH Medium Base, Phenolic, One-Piece Keyless, 4 Terminals White

Overview

P&S 276-WH Medium Base, Phenolic, One-Piece Keyless, 4 Terminals White

Product Specifications

• UPC: 78500747120
• Voltage Rating: 250 Volt
• Body Material: Phenolic
• Body Color: White
• Mounting: 3-1/4 Inch, 4 Inch Box
• Terminal Type: (4) Tri-Drive Screw
• Size: 4.5 Inch Diameter
• Approval: UL, CSA
• Additional Information: RoHS Compliant
• Catalog Number: 276-WH
• Brand Name: Pass & Seymour
• Model: 276
• Type: Box
• Operator Type: Keyless
• Construction: 1-Piece
• Lamp Base: Medium
• Lamp Wattage: 660 Watt
• Catalog Description: MEDIUM BASE, PHENOLIC, ONE-PIECE KEYLESS, 4 TERMINALS WITH TAMPER-RESISTANT-DRIVE SCREWS, FITS 3 1/4-INCH AND 4-INCH BOXES, WITH CAGE NECK.
• Category: Incandescent Lampholders
• Full Technical Description: Box Type; 4.5 Inch Diameter Size; UL, CSA Approval; 250 Volt Voltage Rating; 3-1/4 Inch, 4 Inch Box Mounting; Phenolic Body Material; 1-Piece Construction; 660 Watt Lamp Wattage; (4) Tri-Drive Screw Terminal Type; Keyless Operator Type; Medium Lamp Base; White Body Color; RoHS Compliant; 276 Model
• Manufacturer: PASS & SEYMOUR INC WIRING DEVICES & ACCESSORIES
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Incandescent Lampholder
• Unspsc: 39111803
• UPC 12 Digit: 785007471205
• SKU Name: p&s 276wh
