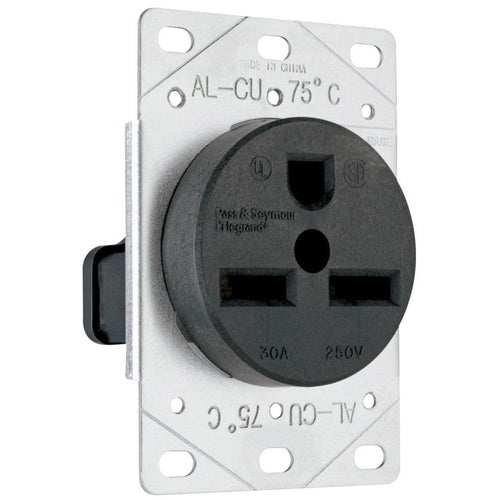

P&S 3801 Straight Blade Receptacle 2Pole 3Wire 30Amp 250V

Overview

P&S 3801 Straight Blade Receptacle 2Pole 3Wire 30Amp 250V

Product Specifications

• UPC: 78500738010
• Material: Molded Plastic
• Face Outer Diameter: 2.1 Inch
• Mounting: Flush Mount
• Approval: UL, UL (Canada and US), CSA
• Additional Information: Overall Dimension 2.5 Inch Width x 2.2 Inch Depth x 3.75 Inch Height; Conductor Material Copper/Aluminum
• Catalog Number: 3801
• Brand Name: Pass & Seymour
• Configuration: 6-30R
• Voltage Rating: 250 Volt AC
• Current Rating: 30 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Catalog Description: STRAIGHT BLADE RECEPTACLE 2-POLE 3-WIRE 30A 250V
• Category: Receptacles & Surge Protectors
• Full Technical Description: Molded Plastic Material; 6-30R Configuration; 3 Wire(S); UL, UL (Canada and Us), CSA Approval; 250 Volt AC Voltage Rating; Flush Mount Mounting; 30 Amp Current Rating; Grounding; 2 Pole(S); 2.1 Inch Face Outer Diameter; Overall Dimension 2.5 Inch Width X 2.2 Inch Depth X 3.75 Inch Height; Conductor Material Copper/Aluminum
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Straight Blade Power Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 785007380101
• SKU Name: p&s 3801
