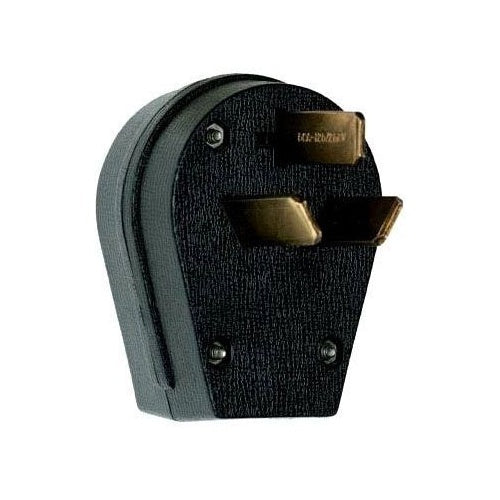

P&S 3861 Angle Plug 30/50Amp 125/250Volt 3P 3Wire

Overview

P&S 3861 Angle Plug 30/50Amp 125/250Volt 3P 3Wire

Product Specifications

• UPC: 78500779390
• Ground Type: Non-Grounding
• Color: Black
• Cord Size: 0.56 to 1.1 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: RoHS Compliant; Overall Dimension 2.77 Inch Width x 1.36 Inch Depth x 3.3 Inch Height; Applicable Standard NEMA WD-1/WD-6
• Catalog Number: 3861
• Brand Name: Pass & Seymour
• Type: Angled
• Configuration: 10-30P/10-50P
• Voltage Rating: 125/250 Volt
• Current Rating: 30/50 Amp
• Number Of Poles: 3
• Number Of Wires: 3
• Catalog Description: ANGLE PLUG 30/50AMP 125/250VOLT 3POLE 3WIRE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Angled Type; Black Color; 10-30P/10-50P Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125/250 Volt Voltage Rating; 30/50 Amp Current Rating; Non-Grounding; 3 Pole(S); 0.56 to 1.1 Inch Cord Size; RoHS Compliant; Overall Dimension 2.77 Inch Width X 1.36 Inch Depth X 3.3 Inch Height; Applicable Standard NEMA Wd-1/Wd-6
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Dual Power Attachment Plug
• Unspsc: 39121402
• UPC 12 Digit: 785007793901
• SKU Name: p&s 3861

Resources

• Manufacturer Spec Sheet
