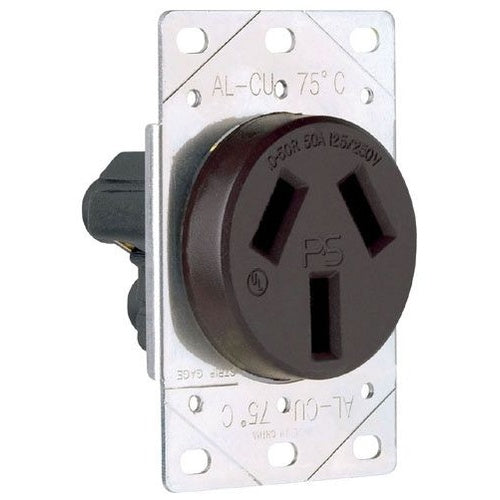

P&S 3890 50Amp 125/250Volt, Straight Blade Flush Receptacle, 3P 3Wire

Overview

P&S 3890 50Amp 125/250Volt, Straight Blade Flush Receptacle, 3P 3Wire

Product Specifications

• UPC: 78500780720
• Ground Type: Non-Grounding
• Face Outer Diameter: 2.1 Inch
• Mounting: Flush Mount
• Approval: UL
• Additional Information: RoHS Compliant; Overall Dimension 2.5 Inch Width x 1.9 Inch Depth x 3.75 Inch Height; Conductor Material Copper/Aluminum
• Catalog Number: 3890
• Brand Name: Pass & Seymour
• Type: Single Range
• Configuration: 10-50R
• Voltage Rating: 125/250 Volt AC
• Current Rating: 50 Amp
• Number Of Poles: 3
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE RECEPTACLE 50A 125/250V 3-POLE 3-WIRE
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Range Type; NEMA 10-50R Configuration; 3 Wire(S); UL 498 Approval; 125/250 Volt Voltage Rating; Flush Mounting; 50 Amp Current Rating; Non-Grounding; 3 Pole(S); Overall Dimension 2.5 Inch Width X 1.9 Inch Depth X 3.75 Inch Height; Conductor Material Copper/Aluminum
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Straight Blade Power Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 785007807202
• SKU Name: p&s 3890

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
