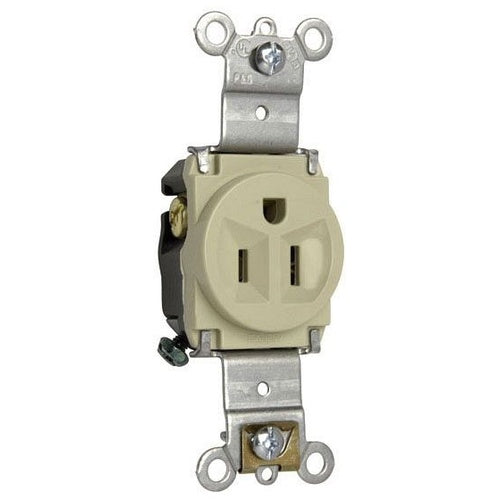

P&S 5261-I Heavy-Duty Single Receptacle, , 15A 125V, Ivory

Overview

P&S 5261-I Heavy-Duty Single Receptacle, , 15A 125V, Ivory

Product Specifications

• UPC: 78500752611
• Ground Type: Automatic Grounding
• Material: Thermoplastic (Back Body), Nylon (Face)
• Color: Ivory
• Wiring: Back, Side
• Grade: Specification
• Approval: UL 498, FSUL WC596, CSA C22.2
• Additional Information: Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.32 Inch W x 1.093 Inch D x 3.28 Inch H
• Catalog Number: 5261-I
• Type: Single
• Constructional Feature: Corrosion Resistant, Impact Resistant
• Configuration: 5-15R
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: HEAVY-DUTY SPEC GRADE SINGLE RECEPTACLE BACK AND SIDE-WIRE 15A 125V
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Thermoplastic (Back Body), Nylon (Face) Material; Ivory Color; 5-15R Configuration; 3 Wire(S); Specification Grade; UL 498, FSUL WC596, CSA C22.2 Approval; 125 VAC Voltage Rating; 15 Ampere Current Rating; Automatic Grounding; 2 Pole(S); Corrosion Resistant, Impact Resistant; Back, Side Wiring; Applicable Standard NEMA Wd-1/Wd-6; Overall Dimension 1.32 Inch W X 1.093 Inch D X 3.28 Inch H
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 785007526110
• SKU Name: p&s 5261i
