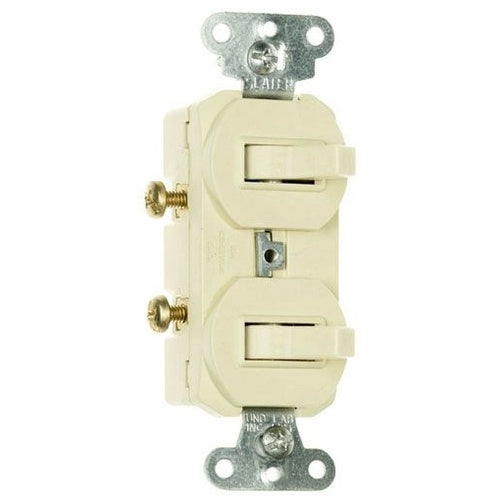

P&S 690-IG Combo 2-Switches 1P 15A 120/277V W/Grd Ivory

Overview

P&S 690-IG Combo 2-Switches 1P 15A 120/277V W/Grd Ivory

Product Specifications

• UPC: 78500769010
• Additional Information: RoHS Compliant; Grounding Type Grounding; Overall Dimension 1.32 Inch Width x 0.94 Inch Depth x 3.28 Inch Height; Wire Size 14 to 12 AWG; Applicable Standard NEMA WD-1/WD-6
• Catalog Number: 690-IG
• Brand Name: Pass & Seymour
• Type: Duplex
• Switch 1 Type: 120/277 Volt AC 15 Amp 1-Pole Toggle
• Switch 2 Type: 120/277 Volt AC 15 Amp 1-Pole Toggle
• Wiring: Side
• Color: Ivory
• Approval: UL 20
• Catalog Description: SINGLE-POLE, DOUBLE COMBINATION SWITCH, 15A, 120/277V, WITH GROUND, IVORY.
• Category: Combination Devices
• Full Technical Description: Duplex Type; Ivory Color; UL 20/498, UL (Canada and Us) Approval; Residential/Commercial Application; Side Wiring; No Wall Plate Included; 120/277 Volt AC 15 Amp 1-Pole With Grounding Toggle Switch 1 Type; 120/277 Volt AC 15 Amp 1-Pole With Grounding Toggle Switch 2 Type; TRADEMASTER[R] Brand; Overall Dimension 1.32 Inch Width X 0.94 Inch Depth X 3.28 Inch Height; Grounding Type Grounding; Wire Size 14 to 12 AWG; Flammability Rating UL 94 V-2; Applicable Standard NEC; 690 Model
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Combination Switch/Switch
• Unspsc: 39122211
• UPC 12 Digit: 785007690101
• SKU Name: p&s 690ig
