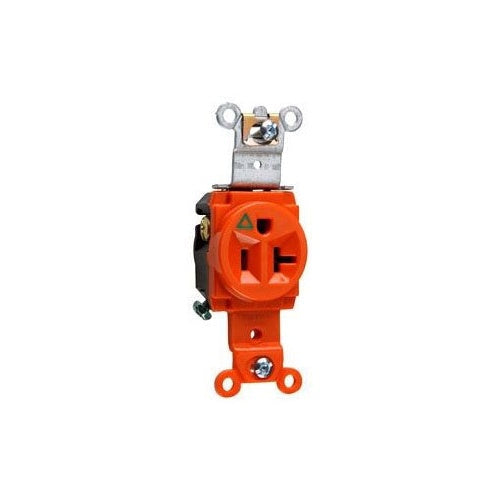

P&S IG5361 Isolated Ground Heavy-Duty Single Receptacle 20A 125V Orange

Overview

P&S IG5361 Isolated Ground Heavy-Duty Single Receptacle 20A 125V Orange

Product Specifications

• UPC: 78500765361
• Ground Type: Isolated Grounding
• Material: Nylon (Face)
• Color: Orange
• Wiring: Back, Side
• Grade: Specification
• Approval: UL 498, FSUL WC596, CSA C22.2
• Additional Information: Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.32 Inch W x 1.093 Inch D x 3.28 Inch H
• Catalog Number: IG5361
• Type: Single, Heavy-Duty
• Constructional Feature: Corrosion Resistant, Impact Resistant
• Configuration: 5-20R
• Voltage Rating: 125 VAC
• Current Rating: 20 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: ISOLATED GROUND HEAVY-DUTY SPEC GRADE SINGLE RECEPTACLE BACK AND SIDE-WIRE 20A 125V
• Category: Wall Plates & Covers
• Full Technical Description: Single, Heavy-Duty Type; Nylon (Face) Material; Orange Color; 5-20R Configuration; 3 Wire(S); Specification Grade; UL 498, FSUL WC596, CSA C22.2 Approval; 125 VAC Voltage Rating; 20 Ampere Current Rating; Isolated Grounding; 2 Pole(S); Corrosion Resistant, Impact Resistant; Back, Side Wiring; Applicable Standard NEMA Wd-1/Wd-6; Overall Dimension 1.32 Inch W X 1.093 Inch D X 3.28 Inch H
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 785007653618
• SKU Name: p&s ig5361

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
