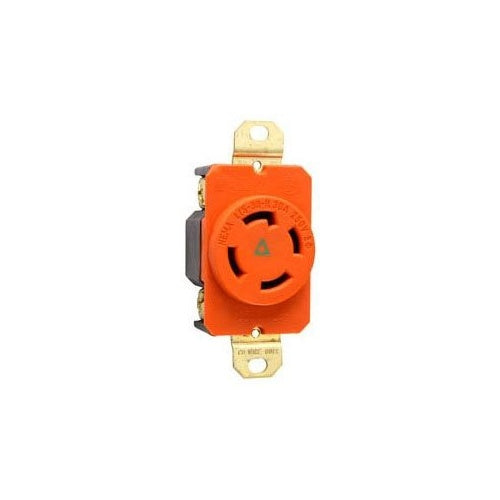

P&S IGL1530-R Turnlok Single Receptacle 4-Way 30A 3P 250V Isolated Ground

Overview

P&S IGL1530-R Turnlok Single Receptacle 4-Way 30A 3P 250V Isolated Ground

Product Specifications

• UPC: 78500714312
• Number Of Wires: 4
• Ground Type: Isolated Grounding
• Face Outer Diameter: 1.545 Inch
• Material: Nylon
• Color: Orange
• Wiring: Back
• Mounting: Strap
• Approval: UL 498, CSA C22.2
• Additional Information: Overall Dimension 1.61 Inch W x 1.28 Inch D x 3.28 Inch H; Applicable Standard NEMA WD-1/WD-6; Operating Temperature -40 to 185 Deg F
• Catalog Number: IGL1530-R
• Brand Name: TURNLOK[R]
• Type: Single Locking
• Constructional Feature: Impact Resistant
• Configuration: L15-30R
• Voltage Rating: 250 VAC 3-Phase
• Current Rating: 30 Ampere
• Number Of Poles: 3
• Catalog Description: TURNLOK REGISTERED SINGLE RECEPTACLE 4-WIRE 30A 3-PHASE 250V ISOLATED GROUND
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Nylon Material; Orange Color; L15-30R Configuration; 4 Wire(S); UL 498, CSA C22.2 Approval; 250 VAC 3-Phase Voltage Rating; Strap Mounting; 30 Ampere Current Rating; Isolated Grounding; 3 Pole(S); Impact Resistant; Back Wiring; 1.545 Inch Face Outer Diameter; TURNLOK[R] Brand; Overall Dimension 1.61 Inch W X 1.28 Inch D X 3.28 Inch H; Applicable Standard NEMA Wd-1/Wd-6; Operating Temperature -40 to 185 Deg F
• Manufacturer: PASS & SEYMOUR INC WIRING DEVICES & ACCESSORIES
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 785007143126
• SKU Name: p&s igl1530r
