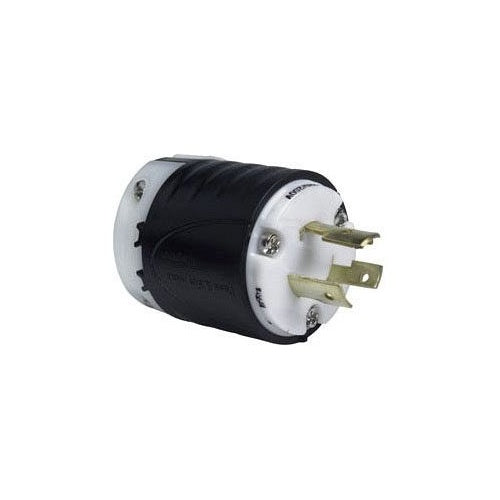

P&S L1020-P Turnlok Plug 3Wire 20A125/250V

Overview

P&S L1020-P Turnlok Plug 3Wire 20A125/250V

Product Specifications

• UPC: 78500710204
• Ground Type: Non-Grounding
• Material: Nylon
• Color: Black, White
• Cord Size: 0.385 to 1.15 Inch
• Approval: UL 498, CSA, UL (Canada and US), FSUL WC596
• Additional Information: Applicable Standard NEMA WD-1; Enclosure IP20; Blade Material Brass; Operating Temperature -40 to 75 Deg C
• Catalog Number: L1020-P
• Brand Name: TURNLOK[R]
• Type: Polarized
• Configuration: L10-20P
• Voltage Rating: 125/250 VAC
• Current Rating: 20 Ampere
• Number Of Poles: 3
• Number Of Wires: 3
• Catalog Description: TURNLOK REGISTERED PLUG 3-WIRE 20A 125/250V
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black, White Color; L10-20P Configuration; 3 Wire(S); UL 498, CSA, UL (Canada and Us), FSUL WC596 Approval; 125/250 VAC Voltage Rating; 20 Ampere Current Rating; Non-Grounding; 3 Pole(S); 0.385 to 1.15 Inch Cord Size; TURNLOK[R] Brand; Applicable Standard NEMA Wd-1; Enclosure IP20; Blade Material Brass; Operating Temperature -40 to 75 Deg C
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 785007102048
• SKU Name: p&s l1020p

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
