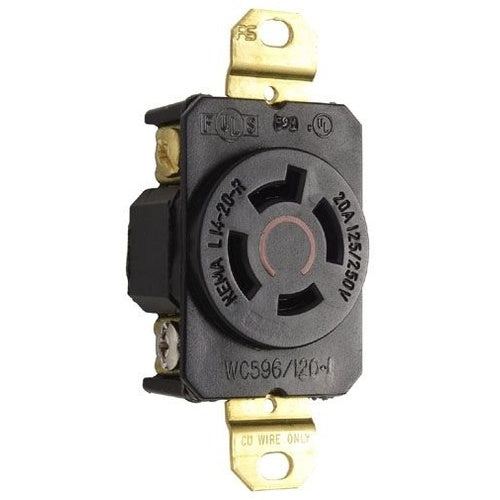

P&S L1420-R Turnlok Single Receptacle 4Wire 20A 125/250Volts

Overview

P&S L1420-R Turnlok Single Receptacle 4Wire 20A 125/250Volts

Product Specifications

• UPC: 78500714205
• Number Of Wires: 4
• Ground Type: Grounding
• Face Outer Diameter: 1.545 Inch
• Material: Nylon
• Wiring: Back
• Mounting: Strap
• Approval: UL 498, CSA C22.2
• Additional Information: RoHS Compliant; Overall Dimension 1.61 Inch Width x 1.19 Inch Depth x 3.28 Inch Height; Applicable Standard Federal Specification UL WC-596
• Catalog Number: L1420-R
• Brand Name: Turnlok[R]
• Type: Single Locking, Compact
• Constructional Feature: Impact Resistant
• Configuration: L14-20R
• Voltage Rating: 125/250 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 3
• Catalog Description: TURNLOK REGISTERED SINGLE RECEPTACLE 4-WIRE 20A 125/250V
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking, Compact Type; Nylon Material; L14-20R Configuration; 4 Wire(S); UL 498, CSA C22.2 Approval; 125/250 Volt AC Voltage Rating; Strap Mounting; 20 Amp Current Rating; Grounding; 3 Pole(S); Impact Resistant; Back Wiring; 1.545 Inch Face Outer Diameter; TURNLOK[R] Brand; RoHS Compliant; Overall Dimension 1.61 Inch Width X 1.19 Inch Depth X 3.28 Inch Height; Applicable Standard Federal Specification UL WC-596
• Manufacturer: PASS & SEYMOUR INC WIRING DEVICES & ACCESSORIES
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Primary Spec Sheet: h
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 785007142051
• SKU Name: p&s l1420r

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
