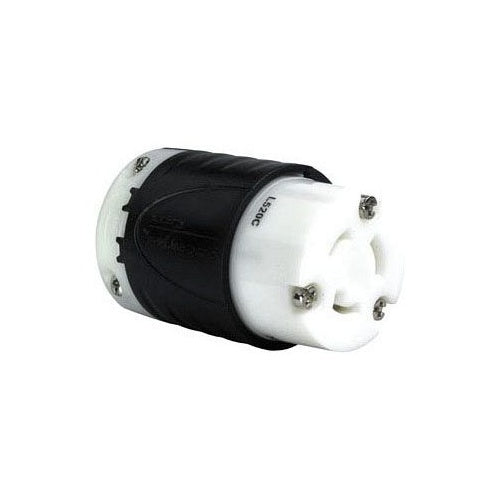

P&S L520-C Turnlok Connector 3-Way 20A 125V

Overview

P&S L520-C Turnlok Connector 3-Way 20A 125V

Product Specifications

• UPC: 78500725201
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon 6
• Color: Black (Back), White (Front)
• Cord Size: 0.225 to 1.15 Inch
• Approval: UL, UL 498, FSUL WC596, CSA C22.2
• Additional Information: RoHS Compliant; Overall Dimension 2.2 Inch Diameter x 3.33 Inch Length; Contact Material Nickel Plated Brass; Enclosure Rating IP20; Temperature Rating -40 to 70 Deg C; Application Industrial Specification Grade; Applicable Standard NEMA WD-1/WD-6, Federa
• Catalog Number: L520-C
• Brand Name: Turnlok[R]
• Type: Polarized
• Constructional Feature: Impact/Corrosion Resistant
• Configuration: L5-20R
• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: TURNLOK REGISTERED CONNECTOR 3-WIRE 20A 125A
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon 6 Material; Black (Back), White (Front) Color; NEMA L5-20R Configuration; 3 Wire(S); UL 498, UL (Canada and Us), CSA C22.2, FSUL WC596 Approval; 125 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Impact/Corrosion Resistant; 0.225 to 1.15 Inch Cord Size; TURNLOK[R] Brand; RoHS Compliant; Overall Dimension 2.2 Inch Diameter X 3.33 Inch Length; Contact Material Nickel Plated Brass; Enclosure Rating IP20; Temperature Rating -40 to 70 Deg C; Application Industrial Specification Grade; Applicable Standard NEMA Wd-1/Wd-6, Federal Specification WC-596
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 785007252019
• SKU Name: p&s l520c
