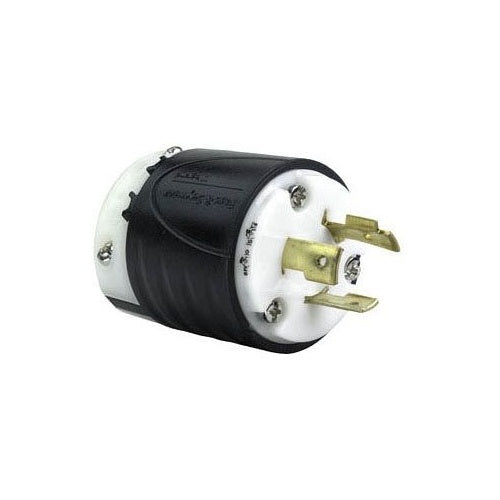

P&S L720-P Turnlok Plug 3-Way 20A 277V

Overview

P&S L720-P Turnlok Plug 3-Way 20A 277V

Product Specifications

• UPC: 78500727204
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon 6
• Color: Black, White
• Cord Size: 0.225 to 1.15 Inch
• Approval: UL 498, CSA
• Additional Information: RoHS Compliant; Overall Dimension 2.2 Inch Diameter x 2.57 Inch Length; Enclosure Rating IP20; Applicable Standard NEMA WD-1, Federal Specification UL WC-596
• Catalog Number: L720-P
• Brand Name: Turnlok[R]
• Type: Polarized
• Constructional Feature: Impact/Corrosion Resistant
• Configuration: L7-20P
• Voltage Rating: 277 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: PLUG 3-WIRE 20A 277V TURNLOK REGISTERED
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon 6 Material; Black, White Color; L7-20P Configuration; 3 Wire(S); UL 498, CSA Approval; 277 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Impact/Corrosion Resistant; 0.225 to 1.15 Inch Cord Size; TURNLOK[R] Brand; RoHS Compliant; Overall Dimension 2.2 Inch Diameter X 2.57 Inch Length; Enclosure Rating IP20; Applicable Standard NEMA Wd-1, Federal Specification UL WC-596
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 785007272048
• SKU Name: p&s l720p
