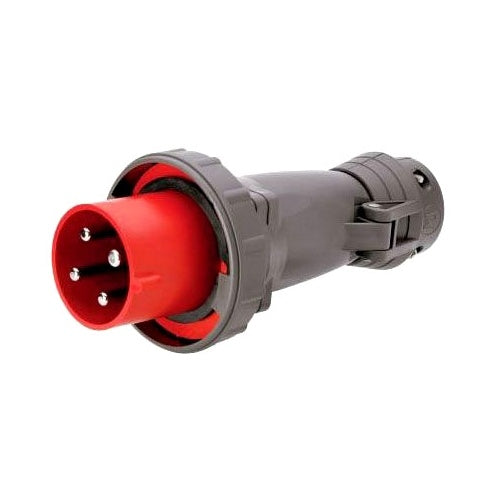

P&S PS460P7-W Pin And Sleeve Plug 4-Way 60A 3Ph 480V Watertight

Overview

P&S PS460P7-W Pin And Sleeve Plug 4-Way 60A 3Ph 480V Watertight

Product Specifications

• UPC: 78500746046
• Minimum Cable Outer Diameter: 0.73 Inch
• Maximum Cable Outer Diameter: 1.14 Inch
• Material: Valox
• Approval: UL 1682, CSA 22.2
• Additional Information: Pin Material Nickel Plated Brass; Color Red; Enclosure Rating IP67; Applicable Standard IEC 309-1/309-2
• Catalog Number: PS460P7-W
• Brand Name: Pass & Seymour
• Type: Circuit Breaking, Polarized
• Constructional Feature: Chemical/Impact/Moisture Resistant, Water Tight
• Voltage Rating: 480 Volt AC 3-Phase
• Current Rating: 60 Amp
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: TRIPLE POLE, FOUR WIRE, PIN AND SLEEVE PLUG. 6 AMP, 480 VAC.
• Category: Pin & Sleeve Devices
• Full Technical Description: Circuit Breaking, Polarized Type; Valox Material; 0.73 Inch min. Cable Outer Diameter; 1.14 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682, CSA 22.2 Approval; 480 Volt AC 3-Phase Voltage Rating; 60 Amp Current Rating; 3 Pole(S); Chemical/Impact/Moisture Resistant, Water Tight; Pin Material Nickel Plated Brass; Color Red; Enclosure Rating IP67; Applicable Standard IEC 309-1/309-2
• Made In Usa: Yes
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 785007460469
• SKU Name: p&s ps460p7w
