Blackburn PAA109 6Awg Parallel Grove ClAMP

Overview

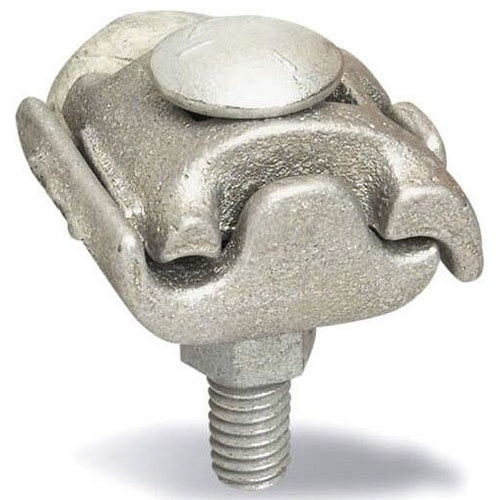

Blackburn PAA109 6Awg Parallel Grove Clamp

Product Specifications

• Brand Name: Blackburn
• Special Features: High-Strength, Heat-Treated Cast Aluminum Alloy provides Secure Connections. Galvanized Steel Carriage Bolt, Nut and Lockwasher included. Dual-Rated for use on Aluminum, ACSR and Copper Conductors.
• Type: Parallel-Groove Clamp
• Conductor Range: Main: 336.4 to 1/0 ACSR ; 1/0 to #6 Armored Rod ACSR ; 400 kcmil to 1/0 STR AL/CU ; 1/0 to #6 Armored Rod AL/CU. Tap: 1/0 to #8 ACSR ; 1/0 STR to #8 SOL ALCU
• Connection: Bolted
• Environmental Conditions: All Seasons / Conditions
• Insulation: None
• Material: Aluminum
• Mounting: None
• Number Of Conductors: 2
• Size: Bolt Head 9/16 inch, Bolt Size 3/8 inch, Height 2-15/32 X Length 2 X Width 1-3/4 inch
• Catalog Description: ALUMINUM TYPE PAA - ONE BOLT ALUMINUM PARALLEL GROOVE CLAMP FOR WIRE RANGE MAIN: 336.4-1/0, 1/0-6 AR ASCR 400-1/0 STR., 1/0-6 AR AL/CU, TAP: 1/0-8 ASCR 1/0 STR.-8 SOL. ALCU, PREFILLED WITH OXIDE INHIBITOR.
• Category: Large Terminals & Connectors
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121449
• UPC 12 Digit: 783786330119
• SKU Name: paa109 blackburn

Resources

• Product Spec Sheet
