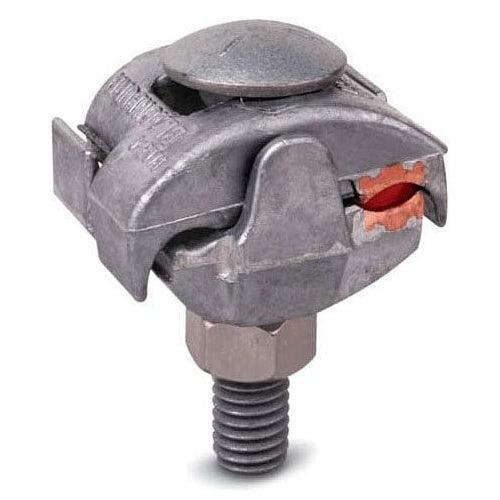

Blackburn PAC7 400 Aluminum To 1/0 Copper Parallel Tap

Overview

Blackburn PAC7 400 Aluminum To 1/0 Copper Parallel Tap

Product Specifications

• Brand Name: Blackburn
• Special Features: Most Corrosion-Resistant Groove Clamp Ever. Pressure-Cast Aluminum Body Effectively Seals Out Moisture and Resists Corrosion. Clamp Seperates Conductors to Reduce the Possibility of Galvanic Corrosion.
• Standard: RUS Listed
• Type: Parallel-Groove Clamp
• Conductor Range: Main: 336.4 to 1/0 ACSR ; 1/0 to #6 Armored Rod ACSR ; 400 kmcil to 2/0 STR ; 1/0 to #6 Armored Rod AL. Tap: 1/0 STR CU to #8 SOL CU
• Connection: Bolted
• Environmental Conditions: All Seasons / Conditions
• Insulation: None
• Material: Aluminum
• Mounting: None
• Number Of Conductors: 2
• Size: Height 2-15/32 X Length 1-5/8 X Width 1-7/8 inch
• Catalog Description: ALUMINUM TYPE PAC - ALUMINUM PARALLEL GROOVE CLAMP WITH CAST COPPER LINER FOR WIRE RANGE MAIN: 336.4-1/0, 1/0-6 AR ASCR 400-2/0 STR., 1/0-6 AR AL/CU, TAP: ASCR 1/0 STR.-8 SOL. ALCU
• Category: Large Terminals & Connectors
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121449
• UPC 12 Digit: 783786330164
• SKU Name: pac7 blackburn
