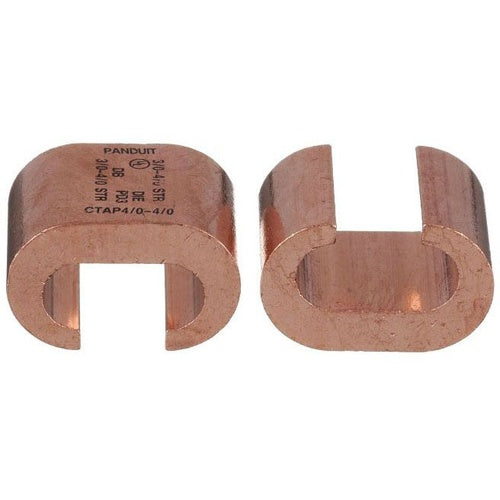

Panduit CTAP4/0-4/0-X Ctap 3/0-4/0 Awg Str Run Tap 10Pk

Overview

Panduit CTAP4/0-4/0-X Ctap 3/0-4/0 Awg Str Run Tap 10Pk

Product Specifications

• UPC: 07498391121
• Minimum Tap Conductor Size: 4/0 AWG Stranded
• Maximum Tap Conductor Size: 3/0 AWG Stranded
• Die Index: PD3, F (Burndy)
• Body Material: High Conductivity Copper
• Approval: UL (Canada and US)
• Additional Information: Size 1 Inch L X 1.08 Inch W X 1.57 Inch H; Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: CTAP4/0-4/0-X
• Model: CTAP
• Voltage Rating: 35 KV
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 3/0 AWG Stranded
• Maximum Run Conductor Size: 4/0 AWG Stranded
• Catalog Description: THE CTAP4/0-4/0-X COMPRESSION CONNECTOR TAP PROVIDES HIGH-STRENGTH AND PREMIUM ELECTRICAL PROPERTIES. IT IS SUITABLE FOR USE WITH SOLID AND STRANDED COPPER CODE CONDUCTORS FOR TAPPING INTO UNBROKEN CONTINUOUS MAIN, AS A WIRE JOINT OR TWO-WAY SPLICE. THE WIDE WIRE RANGE-TAKING CAPABILITY MINIMIZES INVENTORY REQUIREMENTS. UL LISTED PER UL 486 FOR USE UP TO 35 KV AND TEMPERATURE RATED 90. ALSO, UL LISTED PER UL 467 FOR GROUNDING AND BONDING SUITABLE FOR DIRECT BURIAL.
• Category: Large Terminals & Connectors
• Full Size Image: h
• Full Technical Description: 3/0 AWG Stranded min. Run Conductor Size; 4/0 AWG Stranded Max. Run Conductor Size; 4/0 AWG Stranded min. Tap Conductor Size; 3/0 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL (Canada and Us) Approval; 35 kV Voltage Rating; High Conductivity Copper Body Material; PD3, F (Burndy) Die Index; 1 Tap(S); STRUCTUREDGROUND[TM] Brand; Size 1 Inch L X 1.08 Inch W X 1.57 Inch H; Temperature Rating 90 Deg C; RoHS Compliant; CTAP Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Tap
• Unspsc: 46182103
• UPC 12 Digit: 074983911219
• SKU Name: pand ctap4/04/0x
