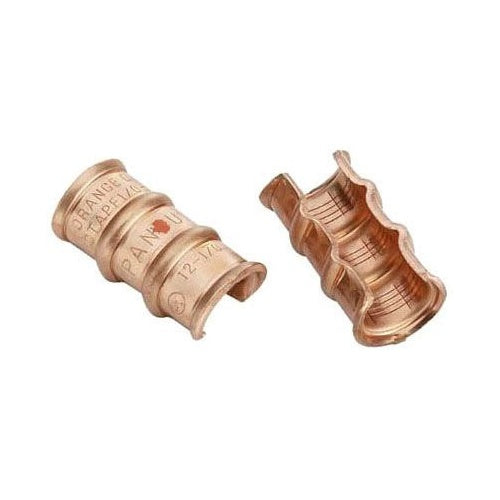

Panduit CTAPF2/0-12-Q Ctap #1-2/0 Awg Run #12-#1 Awg Tap 25Pk

Overview

Panduit CTAPF2/0-12-Q Ctap #1-2/0 Awg Run #12-#1 Awg Tap 25Pk

Product Specifications

• UPC: 07498359978
• Maximum Run Conductor Size: 2/0 AWG STRANDED
• Minimum Tap Conductor Size: 12 AWG STRANDED
• Maximum Tap Conductor Size: 1 AWG STRANDED
• Body Material: FORMED STAMPED COPPER
• Approval: UL, CSA
• Additional Information: COLOR CODE PURPLE; STANDARD PACKAGE 25
• Catalog Number: CTAPF2/0-12-Q
• Brand Name: PANDUIT[R]
• Model: CTAPF
• Voltage Rating: 600 V
• Shape: C
• Number Of Taps: 1
• Conductor Material: COPPER
• Minimum Run Conductor Size: 1 AWG STRANDED
• Catalog Description: THE CTAPF2/0-12-Q COMPRESSION CONNECTOR TAP PROVIDES HIGH-STRENGTH AND PREMIUM ELECTRICAL PROPERTIES. IT IS SUITABLE FOR USE WITH STRANDED COPPER CODE CONDUCTORS AND IS FOR TAPPING INTO UNBROKEN CONTINUOUS MAIN, SPLICING AND PIG TAILING. THE WIDE WIRE RANGE-TAKING CAPABILITY MINIMIZES INVENTORY REQUIREMENTS. UL LISTED PER UL486 FOR USE UP TO 600V AND TEMPERATURE RATED TO 90C WHEN CRIMPED WITH PANDUIT AND SPECIFIED COMPETITOR CRIMPING TOOLS AND DIES.
• Category: Large Terminals & Connectors
• Full Technical Description: 1 AWG Stranded min. Run Conductor Size; 2/0 AWG Stranded Max. Run Conductor Size; 12 AWG Stranded min. Tap Conductor Size; 1 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Formed Stamped Copper Body Material; 1 Tap(S); PANDUIT[R] Brand; Color Code Purple; Standard Package 25; CTAPF Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Tap
• Unspsc: 46182103
• UPC 12 Digit: 074983599783
• SKU Name: pand ctapf2/012q
