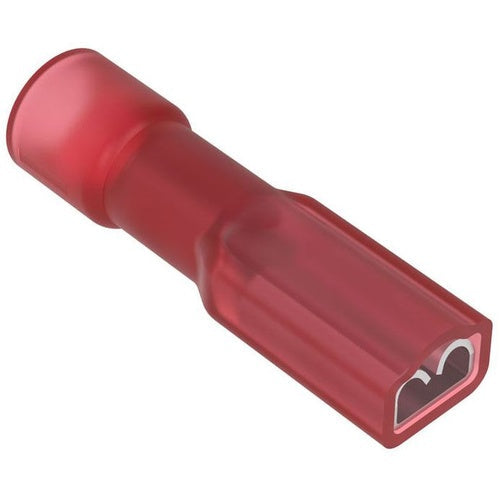

Panduit DNF18-110FIB-M Disc F Rdny .110X.032" 22-18Awg 1000

Overview

Panduit DNF18-110FIB-M Disc F Rdny .110X.032" 22-18Awg 1000

Product Specifications

• UPC: 07498382674
• Insulation Type: Nylon Fully Insulated
• Temperature Rating: 221 Deg F
• Standard Package: 1000
• Approval: UL, CSA C22.2
• Additional Information: Dimension 0.71 Inch L x 0.19 Inch W; Insulation Diameter 3 MM; Butted Seam Barrel; Material Tin-Plated Brass; Flammability Rating UL 94 HB; ROHS Compliant
• Catalog Number: DNF18-110FIB-M
• Brand Name: Pan-Term[R]
• Model: DNF-FIB
• Type: Funnel Entry
• Tab Size: 0.11 Inch x 0.032 Inch
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Color: Red
• Catalog Description: PANDUIT DNF18-110FIB-M FEMALE DISCONNECT
• Category: Small Terminals & Connectors
• Full Technical Description: Funnel Entry Type; Red Color; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; UL, CSA C22.2 Approval; 221 Deg F Temperature Rating; 1000 Standard Package; Nylon Fully Insulated Insulation Type; 0.11 Inch X 0.032 Inch Tab Size; PAN-TERM[R] Brand; Dimension 0.71 Inch L X 0.19 Inch W; Insulation Diameter 3 mm; Butted Seam Barrel; Material Tin-Plated Brass; Flammability Rating UL 94 HB; RoHS Compliant; DNF-FIB Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Female Disconnect
• Unspsc: 39121409
• UPC 12 Digit: 074983826742
• SKU Name: pand dnf18110fibm
