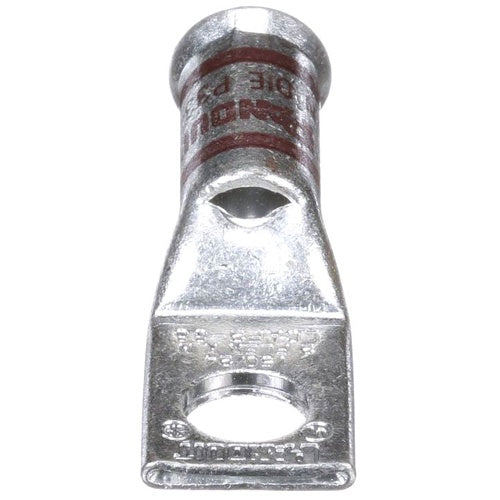

Panduit LCAF2-38-E Copper Lug 1-Hole #2Awg Flared 3/8 Stud Pkg 20

Overview

Panduit LCAF2-38-E Copper Lug 1-Hole #2Awg Flared 3/8 Stud Pkg 20

Product Specifications

• UPC: 07498355747
• Pad Size: 0.7 Inch W x 0.11 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Brown
• Die Index: P33
• Material: Electro Tin Plated Copper
• Overall Length: 1.99 Inch
• Approval: UL, CSA
• Additional Information: Includes Inspection Window; Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: LCAF2-38-E
• Brand Name: Pan-Lug[TM]
• Model: LCAF
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 2 AWG (Flex Class K/M, Diesel Locomotive)
• Barrel Type: Standard with Window, Straight, Belled
• Barrel Length: 0.88 Inch
• Catalog Description: ONE-HOLE, FLARED BARREL, #2 AWG WIRE, 3/8 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 1.99 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 2 AWG (Flex Class K/M, Diesel Locomotive) Conductor Size; 3/8 Inch Stud Size; P33 Die Index; 0.7 Inch W X 0.11 Inch Thk Pad Size; 1 Pad Hole(S); Standard With Window, Straight, Belled Barrel Type; Pan-LUG[TM] Brand; Includes Inspection Window; Temperature Rating 90 Deg C; RoHS Compliant; LCAF Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983557479
• SKU Name: pand lcaf238e
