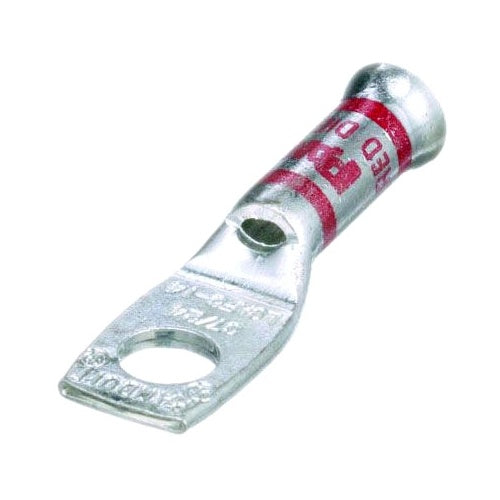

Panduit LCAF8-14-L Copper Lug #8Awg Flared 1/4 Stud Pkg 50

Overview

Panduit LCAF8-14-L Copper Lug #8Awg Flared 1/4 Stud Pkg 50

Product Specifications

• UPC: 07498355709
• Pad Size: 0.48 Inch W x 0.07 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Red
• Die Index: P21
• Material: Electro Tin Plated Copper
• Overall Length: 1.54 Inch
• Approval: UL, CSA
• Additional Information: Includes Inspection Window; Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: LCAF8-14-L
• Brand Name: Pan-Lug[TM]
• Model: LCAF
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 8 AWG (Flex Diesel Locomotive)
• Barrel Type: Standard with Window, Straight, Belled
• Barrel Length: 0.76 Inch
• Catalog Description: ONE-HOLE, FLARED BARREL, #8 AWG WIRE, 1/4 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Red Color; 1.54 Inch Overall Length; 0.76 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 8 AWG (Flex Diesel Locomotive) Conductor Size; 1/4 Inch Stud Size; P21 Die Index; 0.48 Inch W X 0.07 Inch Thk Pad Size; 1 Pad Hole(S); Standard With Window, Straight, Belled Barrel Type; Pan-LUG[TM] Brand; Includes Inspection Window; Temperature Rating 90 Deg C; RoHS Compliant; LCAF Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983557097
• SKU Name: pand lcaf814l
