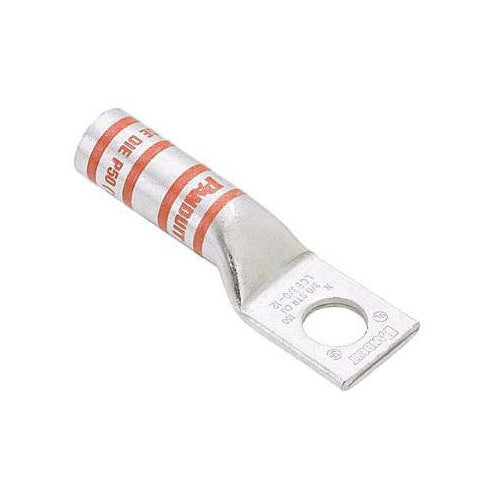

Panduit LCB1/0-38-X Copper Lug 1/0Awg .38" Stud Nowdw Pk10

Overview

Panduit LCB1/0-38-X Copper Lug 1/0Awg .38" Stud Nowdw Pk10

Product Specifications

• UPC: 07498390126
• Pad Size: 0.76 Inch Width x 0.12 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Pink
• Die Index: P42, 12 (Burndy), 42 (T and B)
• Material: Tin Plated Copper
• Overall Length: 2.69 Inch
• Approval: UL 486A/B, CSA C22.2
• Additional Information: RoHS Compliant; Wire Strip Length 1-1/2 Inch; Temperature Rating 90 Deg C
• Catalog Number: LCB1/0-38-X
• Brand Name: Panduit
• Model: LCB
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 1/0 AWG
• Barrel Type: Long, Straight
• Barrel Length: 1.44 Inch
• Catalog Description: ONE-HOLE, LONG BARREL LUG, 1/0 AWG WIRE, 3/8 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Pink Color; 2.69 Inch Overall Length; 1.44 Inch Barrel Length; Copper Conductor Material; UL 486A/B, CSA C22.2 Approval; 35 Kilovolt Voltage Rating; 1/0 AWG Conductor Size; 3/8 Inch Stud Size; P42, 12 (Burndy), 42 (T and B) Die Index; 0.76 Inch Width X 0.12 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Pan-LUG[TM] Brand; RoHS Compliant; Wire Strip Length 1-1/2 Inch; Temperature Rating 90 Deg C; LCB Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983901265
• SKU Name: pand lcb1/038x
