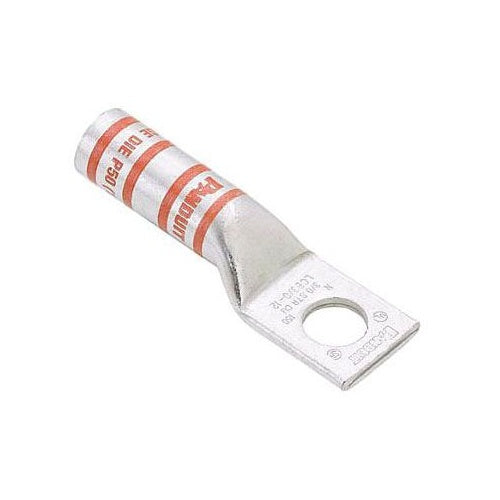

Panduit LCB4-14-L Copper Lug 2-4Awg .25" Stud Nowdw Pk50

Overview

Panduit LCB4-14-L Copper Lug 2-4Awg .25" Stud Nowdw Pk50

Product Specifications

• UPC: 07498390180
• Pad Size: 0.55 Inch Width x 0.09 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Gray
• Die Index: P29, 8 (Burndy), 29 (T and B)
• Material: Tin Plated Copper
• Overall Length: 1.95 Inch
• Approval: UL 486A/B, CSA C22.2
• Additional Information: RoHS Compliant; Wire Strip Length 1-1/8 Inch; Temperature Rating 90 Deg C
• Catalog Number: LCB4-14-L
• Brand Name: Panduit
• Model: LCB
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4 to 3 AWG (Stranded), 2 AWG (Solid)
• Barrel Type: Long, Straight
• Barrel Length: 1.05 Inch
• Catalog Description: ONE-HOLE, LONG BARREL LUG, #4 #3 AWG STR, #2 AWG SOL WIRE, 1/4 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Gray Color; 1.95 Inch Overall Length; 1.05 Inch Barrel Length; Copper Conductor Material; UL 486A/B, CSA C22.2 Approval; 35 Kilovolt Voltage Rating; 4 to 3 AWG (Stranded), 2 AWG (Solid) Conductor Size; 1/4 Inch Stud Size; P29, 8 (Burndy), 29 (T and B) Die Index; 0.55 Inch Width X 0.09 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Pan-LUG[TM] Brand; RoHS Compliant; Wire Strip Length 1-1/8 Inch; Temperature Rating 90 Deg C; LCB Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983901807
• SKU Name: pand lcb414l
