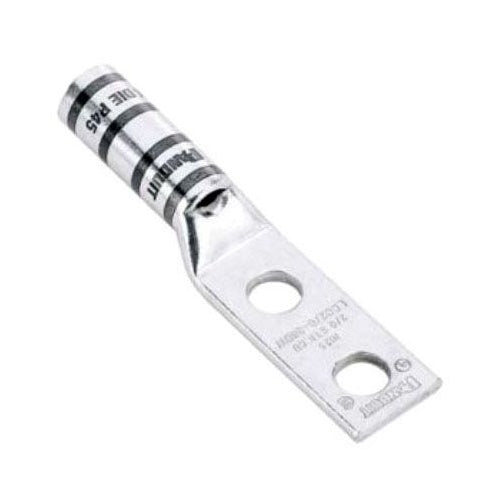

Panduit LCC2-12W-Q Copper Lug 2Awg 2-Hole1.75"space Wdw Pk25

Overview

Panduit LCC2-12W-Q Copper Lug 2Awg 2-Hole1.75"space Wdw Pk25

Product Specifications

• UPC: 07498379788
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Brown
• Die Index: P33, 10 (Burndy), 33 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 4.41 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: RoHS Compliant; Wire Strip Length 1-1/4 Inch; Temperature Rating 90 Deg C
• Catalog Number: LCC2-12W-Q
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 2 AWG
• Barrel Type: Long, Straight
• Barrel Length: 1.16 Inch
• Pad Size: 0.75 Inch W x 0.08 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: TWO-HOLE, LONG BARREL LUG WITH WINDOW, #2 AWG WIRE, 1/2 STUD HOLE, 1.75 HOLE SPACING.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 4.41 Inch Overall Length; 1.16 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 2 AWG Conductor Size; 1/2 Inch Stud Size; P33, 10 (Burndy), 33 (T and B) Die Index; 0.75 Inch W X 0.08 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight Barrel Type; Pan-LUG[TM] Brand; RoHS Compliant; Wire Strip Length 1-1/4 Inch; Temperature Rating 90 Deg C
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983797882
• SKU Name: pand lcc212wq
