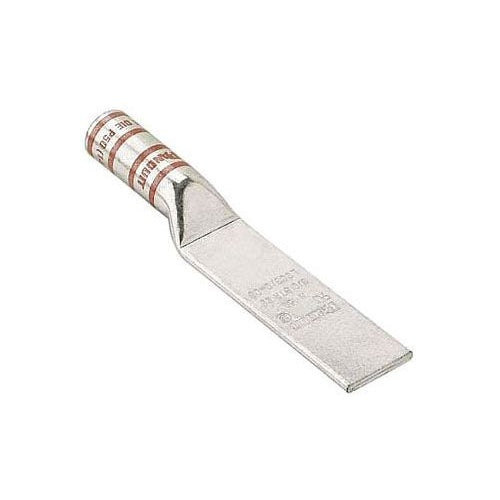

Panduit LCC250-00-X Copper Lug BlaNetKey 250Kcmil Long Pkg 10

Overview

Panduit LCC250-00-X Copper Lug BlaNetKey 250Kcmil Long Pkg 10

Product Specifications

• UPC: 07498390208
• Pad Size: 1.17 Inch Width x 0.14 Inch Thickness
• Color: Yellow
• Die Index: P62
• Material: Tin Plated Copper
• Overall Length: 5.23 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Type Blank Tongue; Wire Strip Length 1-11/16 Inch; Includes Inspection Window; Temperature Rating 90 Deg C; Applicable Standard ASTM B545-97, Class C
• Catalog Number: LCC250-00-X
• Brand Name: Pan-Lug[TM]
• Model: LCC
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 250 KCMIL (Stranded)
• Barrel Type: Long
• Barrel Length: 1.6 Inch
• Catalog Description: BLANK TONGUE, LONG BARREL LUG, 250 KCMIL CABLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Yellow Color; 5.23 Inch Overall Length; 1.6 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 Kilovolt Voltage Rating; 250 kcmil (Stranded) Conductor Size; P62 Die Index; 1.17 Inch Width X 0.14 Inch Thickness Pad Size; Long Barrel Type; Pan-LUG[TM] Brand; Type Blank Tongue; Wire Strip Length 1-11/16 Inch; Includes Inspection Window; Temperature Rating 90 Deg C; Applicable Standard ASTM B545-97, Class C
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983902088
• SKU Name: pand lcc25000x
