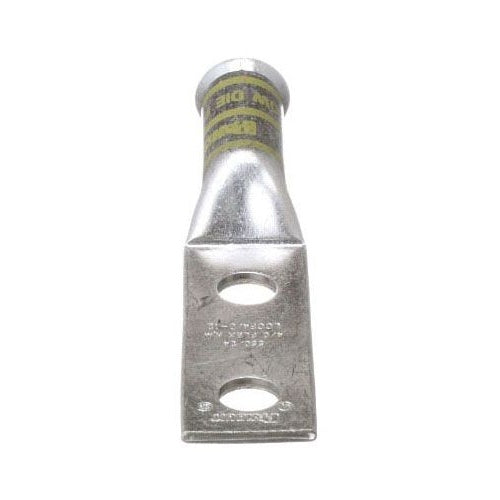

Panduit LCCF4/0-12-X Copper Lug 2-Hole 4/0Awg Flared 1/2 Stud Pkg 10

Overview

Panduit LCCF4/0-12-X Copper Lug 2-Hole 4/0Awg Flared 1/2 Stud Pkg 10

Product Specifications

• UPC: 07498375319
• Pad Size: 1.17 INCH W X 0.14 INCH THK
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 INCH
• Stud Size: 1/2 INCH
• Color: YELLOW
• Die Index: 62
• Material: COPPER
• Overall Length: 5.23 INCH
• Approval: UL 486-A, CSA
• Additional Information: LOCOMOTIVE CONDUCTOR SIZE 550/24; STANDARD PACKAGE QUANTITY 10 PIECE
• Catalog Number: LCCF4/0-12-X
• Brand Name: PANDUIT[R]
• Model: LCCF
• Voltage Rating: 35 KV
• Conductor Material: COPPER
• Conductor Size: 250 MCM (CODE), 4/0 AWG (WELD)
• Barrel Type: BELLED
• Barrel Length: 1.61 INCH
• Catalog Description: TWO-HOLE, LONG FLARED BARREL, 4/0 AWG WIRE, 1/2 STUD HOLE, 1 3/4 HOLE SPACING, NEMA HOLE SIZES AND SPACING.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; Yellow Color; 5.23 Inch Overall Length; 1.61 Inch Barrel Length; Copper Conductor Material; UL 486-A, CSA Approval; 35 kV Voltage Rating; 250 MCM (Code), 4/0 AWG (Weld) Conductor Size; 1/2 Inch Stud Size; 62 Die Index; 1.17 Inch W X 0.14 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Belled Barrel Type; PANDUIT[R] Brand; Locomotive Conductor Size 550/24; Standard Package Quantity 10 Piece; LCCF Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983753192
• SKU Name: pand lccf4/012x
