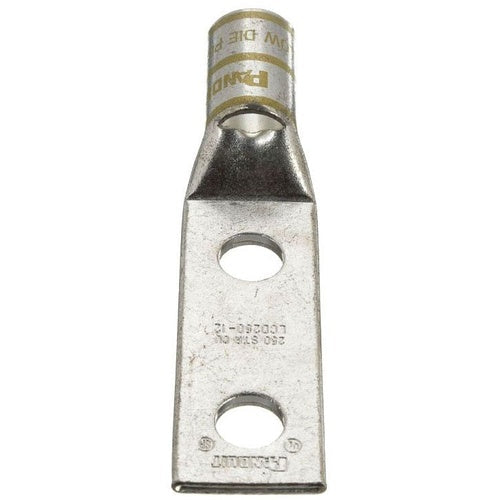

Panduit LCD250-12-X Copper Lug 250Mcm 1.75" Space Wdw Pk10

Overview

Panduit LCD250-12-X Copper Lug 250Mcm 1.75" Space Wdw Pk10

Product Specifications

• UPC: 07498390098
• Pad Size: 1.17 Inch W x 0.14 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Yellow
• Die Index: P62, 16 (Burndy), 62 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 4.68 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Includes Inspection Window; Temperature Rating 90 Deg C
• Catalog Number: LCD250-12-X
• Brand Name: Pan-Lug[TM]
• Model: LCD
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 250 KCMIL
• Barrel Type: Standard with Window, Straight
• Barrel Length: 1.25 Inch
• Catalog Description: TWO-HOLE, STANDARD BARREL LUG WITH WINDOW, 250 KCMIL CABLE, 1/2 STUD HOLE, 1.75 HOLE SPACING, NEMA HOLE SIZES AND SPACING.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Yellow Color; 4.68 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 250 kcmil Conductor Size; 1/2 Inch Stud Size; P62, 16 (Burndy), 62 (T and B) Die Index; 1.17 Inch W X 0.14 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard With Window, Straight Barrel Type; Pan-LUG[TM] Brand; Includes Inspection Window; Temperature Rating 90 Deg C; LCD Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983900985
• SKU Name: pand lcd25012x
