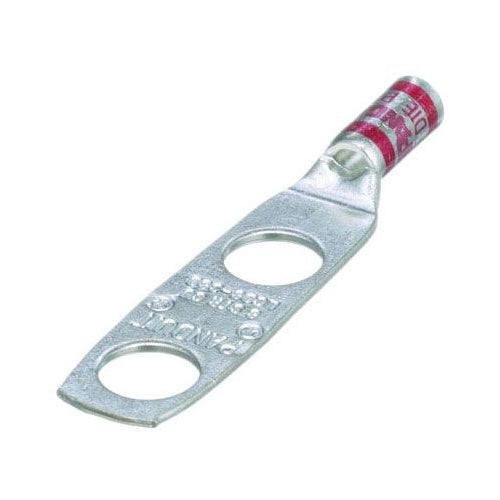

Panduit LCD8-38D-L Copper Lug Sbw 2-Holes#8Awg 3/8 1 Pkg 50

Overview

Panduit LCD8-38D-L Copper Lug Sbw 2-Holes#8Awg 3/8 1 Pkg 50

Product Specifications

• UPC: 07498338319
• Pad Size: 0.62 INCH W X 0.05 INCH THK
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 INCH
• Stud Size: 3/8 INCH
• Color: RED
• Die Index: 21
• Material: COPPER
• Overall Length: 2.56 INCH
• Approval: UL 486-A, CSA
• Additional Information: LOCOMOTIVE CONDUCTOR SIZE 37/24; STANDARD PACKAGE QUANTITY 50 PIECE; WITH INSPECTION WINDOW
• Catalog Number: LCD8-38D-L
• Brand Name: PANDUIT[R]
• Model: LCD
• Voltage Rating: 35 KV
• Conductor Material: COPPER
• Conductor Size: 8 AWG, 23 (NAVY)
• Barrel Type: STANDARD
• Barrel Length: 0.56 INCH
• Catalog Description: TWO-HOLE, STANDARD BARREL LUG WITH WINDOW, #8 AWG WIRE, 3/8 STUD HOLE, 1 HOLE SPACING.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; Red Color; 2.56 Inch Overall Length; 0.56 Inch Barrel Length; Copper Conductor Material; UL 486-A, CSA Approval; 35 kV Voltage Rating; 8 AWG, 23 (Navy) Conductor Size; 3/8 Inch Stud Size; 21 Die Index; 0.62 Inch W X 0.05 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Standard Barrel Type; PANDUIT[R] Brand; Locomotive Conductor Size 37/24; Standard Package Quantity 50 Piece; With Inspection Window; LCD Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983383191
• SKU Name: pand lcd838dl
