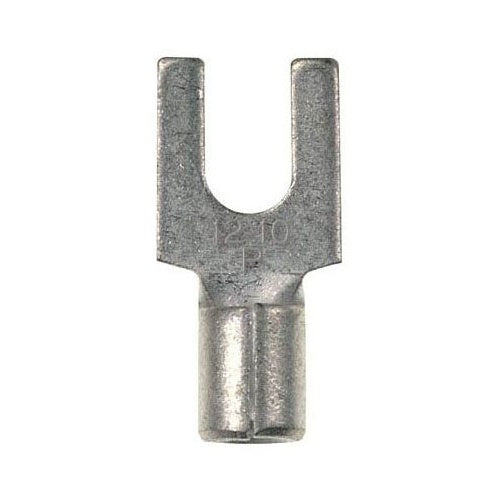

Panduit P10-10F-D Fork Non-Insulated 12-10Awg #10 Pk500

Overview

Panduit P10-10F-D Fork Non-Insulated 12-10Awg #10 Pk500

Product Specifications

• UPC: 07498380521
• Temperature Rating: 302 Deg F
• Standard Package: 500
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Overall Dimension 0.78 Inch L x 0.37 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 2000 V; ROHS Compliant
• Catalog Number: P10-10F-D
• Brand Name: Pan-Term[R]
• Model: P-F
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: Non-Insulated
• Stud Size: #10
• Catalog Description: FORK TERMINAL, NON-INSULATED, 12- 10 AWG, #10 STUD SIZE, BULK PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 302 Deg F Temperature Rating; 500 Standard Package; #10 Stud Size; Non-Insulated Insulation Type; PAN-TERM[R] Brand; Overall Dimension 0.78 Inch L X 0.37 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 2000 V; RoHS Compliant; P-F Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Fork Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983805211
• SKU Name: pand p1010fd
