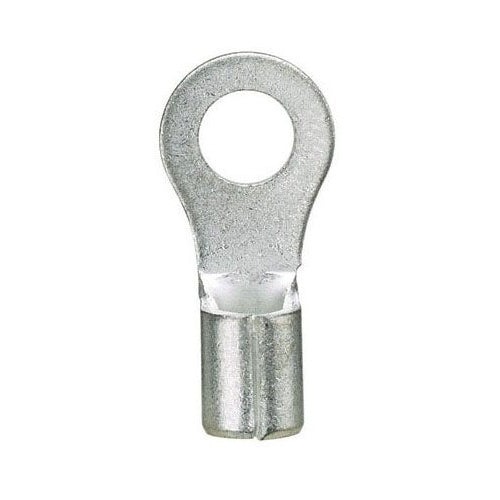

Panduit P10-38R-D Ring Non-Insulated 12-10Awg 3/8" Stud Pk500

Overview

Panduit P10-38R-D Ring Non-Insulated 12-10Awg 3/8" Stud Pk500

Product Specifications

• UPC: 07498380239
• Standard Package: 500
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: RoHS Compliant; Overall Dimension 1.05 Inch L x 0.58 Inch W; Clearance 0.44 Inch; Wire Strip Length 9/32 Inch; Material Electro Tin Plated Copper; Barrel Type Brazed Seam, Standard; Voltage Rating 2000 V
• Catalog Number: P10-38R-D
• Type: Beveled
• Minimum Conductor Size: 14 AWG
• Maximum Conductor Size: 10 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: 3/8 Inch
• Temperature Rating: 302 Deg F
• Catalog Description: RING TERMINAL, 14 10 AWG, 3/8" STUD SIZE, NON-INSULATED, BULK PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Beveled Type; Metallic Color; 14 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 302 Deg F Temperature Rating; 500 Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; PAN-TERM[R] Brand; RoHS Compliant; Overall Dimension 1.05 Inch L X 0.58 Inch W; Clearance 0.44 Inch; Wire Strip Length 9/32 Inch; Material Electro Tin Plated Copper; Barrel Type Brazed Seam, Standard; Voltage Rating 2000 V
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983802395
• SKU Name: pand p1038rd
