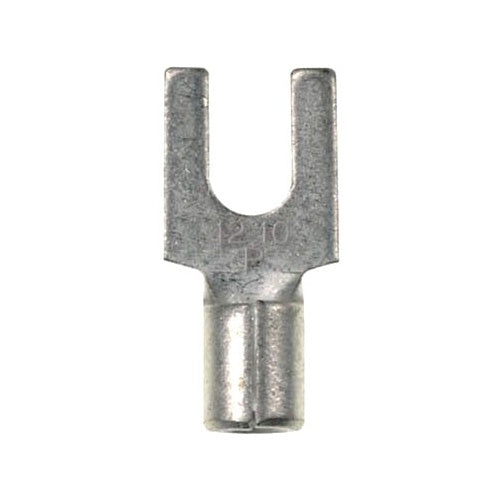

Panduit P18-10F-C Fork Non-Insulated 22-16Awg #10 Stud Pk100

Overview

Panduit P18-10F-C Fork Non-Insulated 22-16Awg #10 Stud Pk100

Product Specifications

• UPC: 07498380504
• Temperature Rating: 302 Deg F
• Standard Package: 100
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Overall Dimension 0.71 Inch L x 0.35 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 2000 V; ROHS Compliant
• Catalog Number: P18-10F-C
• Brand Name: Pan-Term[R]
• Model: P-F
• Type: Standard
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Insulation Type: Non-Insulated
• Stud Size: #10
• Catalog Description: FORK TERMINAL, NON-INSULATED, 22- 16 AWG, #10 STUD SIZE, STANDARD PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 302 Deg F Temperature Rating; 100 Standard Package; #10 Stud Size; Non-Insulated Insulation Type; PAN-TERM[R] Brand; Overall Dimension 0.71 Inch L X 0.35 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; Voltage Rating 2000 V; RoHS Compliant; P-F Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Fork Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983805044
• SKU Name: pand p1810fc
