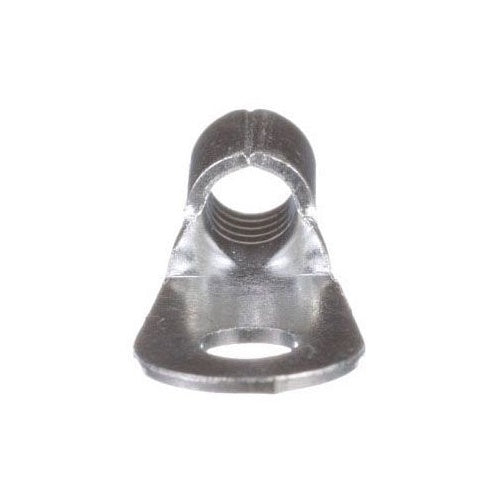

Panduit P8-10R-T Ring Non-Insulated 8Awg #10 Stud Pk200

Overview

Panduit P8-10R-T Ring Non-Insulated 8Awg #10 Stud Pk200

Product Specifications

• UPC: 07498387084
• Standard Package: 200
• Approval: UL, CSA
• Additional Information: DIMENSION 1.14 INCH LENGTH X 0.47 INCH WIDTH X 0.04 INCH THICK; BRAZED SEAM BARREL; MATERIAL ELECTROLYTIC TIN PLATED COPPER
• Catalog Number: P8-10R-T
• Brand Name: PAN-TERM.
• Model: P
• Type: BEVELED
• Maximum Conductor Size: 8 AWG
• Insulation Type: NON INSULATED
• Stud Size: #10
• Temperature Rating: 194 DEG F
• Catalog Description: THE P8-10R-T PAN-TERM TERMINAL IS A NON-INSULATED, RING TERMINAL. BRAZED SEAM PROTECTS TERMINAL BARREL FROM SPLITTING DURING THE CRIMP PROCESS. INTERNAL BARREL SERRATIONS ASSURE GOOD WIRE CONTACT AND MAXIMUM TENSILE STRENGTH.
• Category: Large Terminals & Connectors
• Full Technical Description: Beveled Type; 8 AWG Max. Conductor Size; UL, CSA Approval; 194 Deg F Temperature Rating; 200 Standard Package; #10 Stud Size; Non Insulated Insulation Type; Pan-Term. Brand; Dimension 1.14 Inch Length X 0.47 Inch Width X 0.04 Inch Thick; Brazed Seam Barrel; Material Electrolytic Tin Plated Copper; P Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983870844
• SKU Name: pand p810rt
