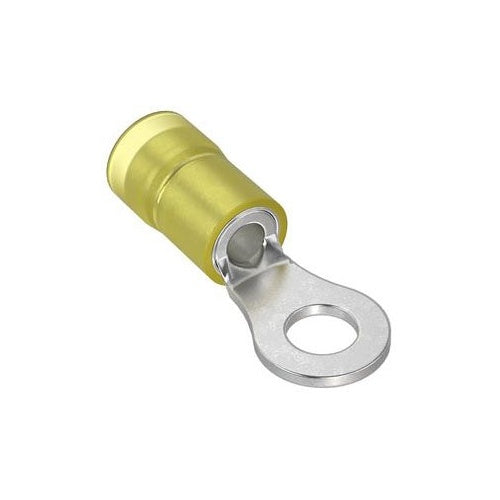

Panduit PN10-10R-L Ring Nylon Insulated 12-10Awg #10 Pk50

Overview

Panduit PN10-10R-L Ring Nylon Insulated 12-10Awg #10 Pk50

Product Specifications

• UPC: 07498380032
• Stud Size: #10
• Temperature Rating: 221 Deg F
• Standard Package: 50
• Approval: UL (Canada and US), CSA
• Additional Information: RoHS Compliant; Barrel Style Insulation Grip Sleeve; Voltage Rating 600 Volt; Overall Dimension 1.06 Inch Length x 0.38 Inch Width; Maximum Wire Insulation Diameter 0.23 Inch; Material Electrolytic Tin Plated Copper
• Catalog Number: PN10-10R-L
• Brand Name: Pan-Term[R]
• Model: PN-R
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Catalog Description: THE PN10-10R-L PAN-TERM TERMINAL IS A NYLON INSULATED, RING TERMINAL WITH FUNNEL ENTRY. THE METAL INSULATION GRIP SLEEVE CRIMPS TO WIRE INSULATION, PROVIDING PROTECTION AND STRAIN RELIEF TO THE CRIMP JOINT FOR HIGH VIBRATION APPLICATIONS. INTERNAL BARREL SERRATIONS ASSURE GOOD WIRE CONTACT AND MAXIMUM TENSILE STRENGTH.
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL (Canada and Us), CSA Approval; 221 Deg F Temperature Rating; 50 Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; PAN-TERM[R] Brand; RoHS Compliant; Barrel Style Insulation Grip Sleeve; Voltage Rating 600 Volt; Overall Dimension 1.06 Inch Length X 0.38 Inch Width; Maximum Wire Insulation Diameter 0.23 Inch; Material Electrolytic Tin Plated Copper; PN-R Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983800322
• SKU Name: pand pn1010rl
