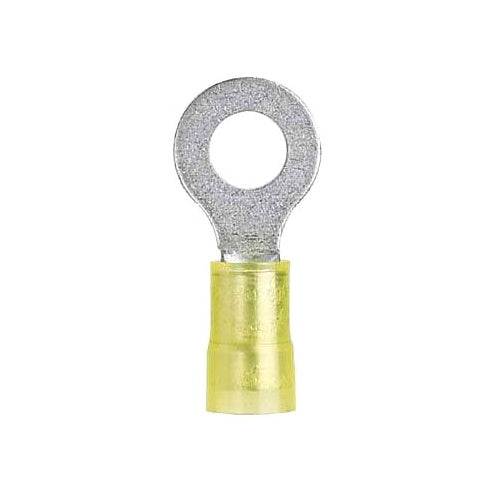

Panduit PN10-38R-D Ring Nylon Insulated 12-10Awg 3/8" Stud Pk500

Overview

Panduit PN10-38R-D Ring Nylon Insulated 12-10Awg 3/8" Stud Pk500

Product Specifications

• UPC: 07498380039
• Stud Size: 3/8 Inch
• Temperature Rating: 221 Deg F
• Standard Package: 500
• Approval: UL (Canada and US), CSA
• Additional Information: RoHS Compliant; Barrel Style Insulation Grip Sleeve; Voltage Rating 600 Volt; Overall Dimension 1.29 Inch Length x 0.58 Inch Width; Maximum Wire Insulation Diameter 0.23 Inch; Material Electrolytic Tin Plated Copper
• Catalog Number: PN10-38R-D
• Brand Name: Pan-Term[R]
• Model: PN-R
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Catalog Description: RING TERMINAL, 12 10 AWG, 3/8" STUD SIZE, NYLON INSULATED, BULK PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL (Canada and Us), CSA Approval; 221 Deg F Temperature Rating; 500 Standard Package; 3/8 Inch Stud Size; Nylon Insulated Insulation Type; PAN-TERM[R] Brand; RoHS Compliant; Barrel Style Insulation Grip Sleeve; Voltage Rating 600 Volt; Overall Dimension 1.29 Inch Length X 0.58 Inch Width; Maximum Wire Insulation Diameter 0.23 Inch; Material Electrolytic Tin Plated Copper; PN-R Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983800391
• SKU Name: pand pn1038rd
