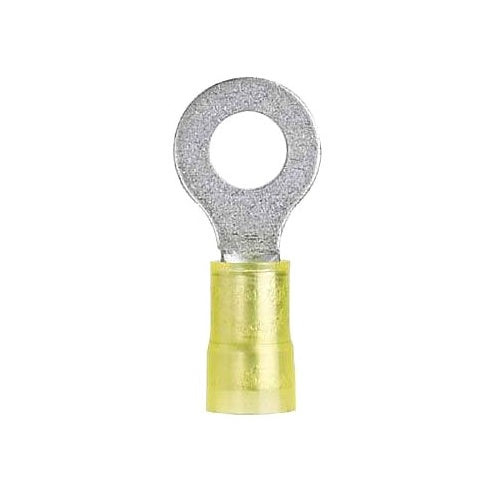

Panduit PN10-6R-L Ring Nylon Insulated 12-10Awg #6 Stud Pk50

Overview

Panduit PN10-6R-L Ring Nylon Insulated 12-10Awg #6 Stud Pk50

Product Specifications

• UPC: 07498380028
• Stud Size: #6
• Temperature Rating: 221 Deg F
• Standard Package: 50
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Overall Dimension 1.06 Inch L x 0.37 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Insulation Grip Sleeve; Voltage Rating 600 V; ROHS Compliant
• Catalog Number: PN10-6R-L
• Brand Name: Pan-Term[R]
• Model: PN-R
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Catalog Description: RING TERMINAL, 12 10 AWG, #6 STUD SIZE, NYLON INSULATED, STANDARD PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/486B, CSA C22.2 Approval; 221 Deg F Temperature Rating; 50 Standard Package; #6 Stud Size; Nylon Insulated Insulation Type; PAN-TERM[R] Brand; Overall Dimension 1.06 Inch L X 0.37 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Insulation Grip Sleeve; Voltage Rating 600 V; RoHS Compliant; PN-R Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983800285
• SKU Name: pand pn106rl
