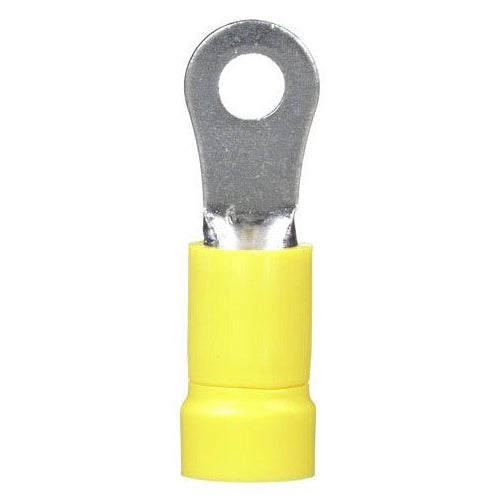

Panduit PV10-6R-D Ring Terminal Vinyl 12-10Awg #6 Pk500

Overview

Panduit PV10-6R-D Ring Terminal Vinyl 12-10Awg #6 Pk500

Product Specifications

• UPC: 07498380129
• Stud Size: #6
• Temperature Rating: 221 Deg F
• Standard Package: 500 per Pack
• Approval: UL 486A/B, UL (Canada and US), CSA C22.2
• Additional Information: RoHS Compliant; Barrel Type Brazed Seam; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper; Overall Dimension 1.05 Inch Length x 0.31 Inch Width; Flammability Rating UL 94 V-0
• Catalog Number: PV10-6R-D
• Brand Name: Panduit
• Model: PV-R
• Type: Funnel Entry
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Vinyl Insulated
• Catalog Description: RING TERMINAL, 12 10 AWG, #6 STUD SIZE, VINYL INSULATED, FUNNEL ENTRY, BULK PACKAGE.
• Category: Small Terminals & Connectors
• Full Technical Description: Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/B, UL (Canada and Us), CSA C22.2 Approval; 221 Deg F Temperature Rating; 500 Per Pack Standard Package; #6 Stud Size; Vinyl Insulated Insulation Type; PAN-TERM[R] Brand; RoHS Compliant; Barrel Type Brazed Seam; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper; Overall Dimension 1.05 Inch Length X 0.31 Inch Width; Flammability Rating UL 94 V-0; PV-R Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983801299
• SKU Name: pand pv106rd
