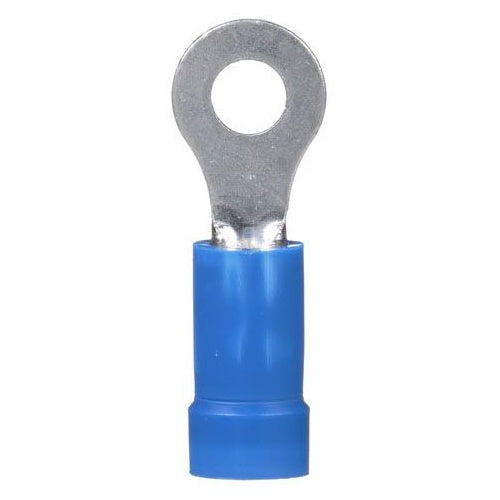

Panduit PV14-6R-M Ring Terminal Vinyl 16-14Awg #6 Pk1000

Overview

Panduit PV14-6R-M Ring Terminal Vinyl 16-14Awg #6 Pk1000

Product Specifications

• UPC: 07498380117
• Stud Size: #6
• Temperature Rating: 221 Deg F
• Standard Package: 10000 per Pack
• Approval: UL 486A/B, UL (Canada and US), CSA C22.2
• Additional Information: RoHS Compliant; Barrel Type Brazed Seam; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper; Overall Dimension 0.92 Inch Length x 0.31 Inch Width; Flammability Rating UL 94 V-0
• Catalog Number: PV14-6R-M
• Brand Name: Panduit
• Model: PV-R
• Type: Funnel Entry
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Vinyl Insulated
• Catalog Description: THE PV14-6R-M PAN-TERM TERMINAL IS A VINYL INSULATED, RING TERMINAL. BRAZED SEAM PROTECTS TERMINAL BARREL FROM SPLITTING DURING THE CRIMP PROCESS. INTERNAL BARREL SERRATIONS ASSURE GOOD WIRE CONTACT AND MAXIMUM TENSILE STRENGTH.
• Category: Small Terminals & Connectors
• Full Technical Description: Funnel Entry Type; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, UL (Canada and Us), CSA C22.2 Approval; 221 Deg F Temperature Rating; 10000 Per Pack Standard Package; #6 Stud Size; Vinyl Insulated Insulation Type; PAN-TERM[R] Brand; RoHS Compliant; Barrel Type Brazed Seam; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper; Overall Dimension 0.92 Inch Length X 0.31 Inch Width; Flammability Rating UL 94 V-0; PV-R Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983801176
• SKU Name: pand pv146rm

Resources

• Manufacturer Spec Sheet
• Technical Drawing
