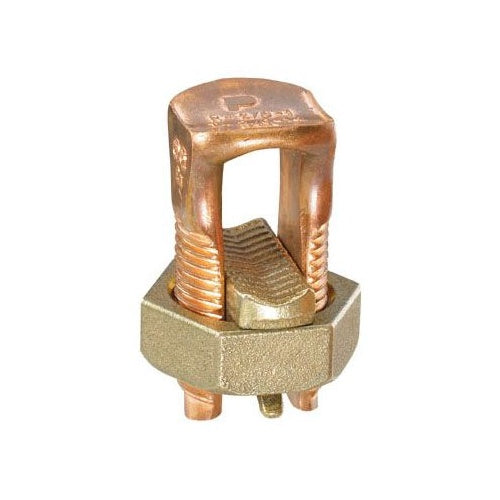

Panduit SBC350-1 Split Bolt Copper 2/0Str-350Kcmil Pkg 1

Overview

Panduit SBC350-1 Split Bolt Copper 2/0Str-350Kcmil Pkg 1

Product Specifications

• UPC: 07498390411
• Maximum Run Conductor Size: 350 KCMIL
• Minimum Tap Conductor Size: 2/0 AWG Stranded
• Maximum Tap Conductor Size: 350 KCMIL
• Material: Corrosion Resistant High Strength Copper Alloy
• Approval: UL, CSA
• Additional Information: Size 2.42 Inch L x 1.48 Inch W; Tightening Torque 650 Lb-Inch; Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SBC350-1
• Brand Name: Pan-Lug[TM]
• Model: SBC
• Type: Split Bolt
• Voltage Rating: 600 V
• Installation: Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 2/0 AWG Stranded
• Catalog Description: SPLIT BOLT, COPPER, TYPE SBC, 2/0 STR - 350 KCMIL.
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Corrosion Resistant High Strength Copper Alloy Material; 2/0 AWG Stranded min. Run Conductor Size; 350 kcmil Max. Run Conductor Size; 2/0 AWG Stranded min. Tap Conductor Size; 350 kcmil Max. Tap Conductor Size; Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Pan-LUG[TM] Brand; Size 2.42 Inch L X 1.48 Inch W; Tightening Torque 650 lb-Inch; Temperature Rating 90 Deg C; RoHS Compliant; SBC Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 074983904112
• SKU Name: pand sbc3501
