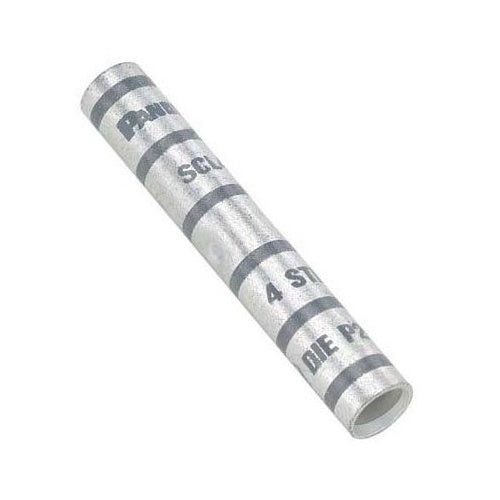

Panduit SCL6-L Copper Butt Splice Long #6Awg Pkg 50

Overview

Panduit SCL6-L Copper Butt Splice Long #6Awg Pkg 50

Product Specifications

• UPC: 07498390431
• Length: 2.38 Inch
• Inner Diameter: 0.22 Inch
• Outer Diameter: 0.31 Inch
• Body Material: Tin Plated Copper
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SCL6-L
• Model: SCL
• Type: Butt
• Voltage Rating: 35 KV
• Conductor Size: 6 AWG
• Conductor Material: Copper
• Color Code: Blue
• Barrel Type: Long
• Catalog Description: THE SCL6-L COPPER COMPRESSION LUG LUG, STANDARD BARREL, HAS COLOR-CODED BARRELS MARKED WITH PANDUIT AND SPECIFIED COMPETITOR DIE INDEX NUMBERS FOR PROPER CRIMP DIE SELECTION. AN INSPECTION WINDOW AIDS TO VISUALLY ASSURE FULL CONDUCTOR INSERTION, AND THE TIN-PLATE MATERIAL HELPS TO INHIBIT CORROSION. UL LISTED AND CSA CERTIFIED TO 35 KV AND TEMPERATURE RATED TO 90C.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 2.38 Inch; 0.22 Inch Inner Diameter; 0.31 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 6 AWG Conductor Size; Blue Color Code; Long Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCL Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 074983904310
• SKU Name: pand scl6l
