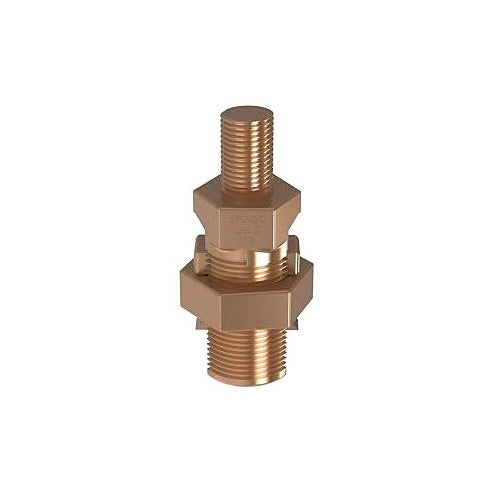

Panduit SP2-2-C Service Post 10 Sol-2 Str Male 100Pk

Overview

Panduit SP2-2-C Service Post 10 Sol-2 Str Male 100Pk

Product Specifications

• UPC: 07498371665
• Material: Hard Drawn Copper
• Standard Package: 100
• Approval: UL 467 (Canada and US)
• Used On: Cable to Steel Structure/Fence Post/Transformer
• Additional Information: Nut Hex Size 0.88 Inch; Body Hex Size 0.69 Inch; ROHS Compliant
• Catalog Number: SP2-2-C
• Model: SP2
• Conductor Size: 10 AWG Solid to 2 AWG Stranded
• Number Of Conductors: 2
• Stud Diameter: 3/8 Inch-16 TPI
• Stud Length: 0.63 Inch
• Body Hex Size: 0.69 Inch
• Nut Hex Size: 0.88 Inch
• Catalog Description: THE SP2-2-C SERVICE POST GROUNDING LUG IS DESIGNED FOR GROUNDING TWO COPPER CODE CONDUCTORS TO STEEL STRUCTURES, BUSBARS, TRANSFORMERS. THE TRUE HEX DESIGN FOR BODY AND NUT HEX PROVIDES CORRECT FIT WITH SOCKET, BOX, OR OPEN-END WRENCHES, RESULTING IN PROPER TORQUING OF ELECTRICAL CONNECTION. THE PRESSURE BAR PROVIDES A SECURE CONNECTION ON A FULL RANGE OF CONDUCTOR COMBINATIONS USED WITH EACH LUG PROVIDING A PREMIUM WIRE PULL-OUT STRENGTH. UL LISTED FOR GROUNDING AND BONDING.
• Category: Large Terminals & Connectors
• Full Technical Description: Hard Drawn Copper Material; Cable to Steel Structure/Fence Post/Transformer Used on; 0.63 Inch Stud Length; UL 467 (Canada and Us) Approval; 100 Standard Package; 2 Conductor(S); 10 AWG Solid to 2 AWG Stranded Conductor Size; 3/8 Inch-16 TPI Stud Diameter; 0.69 Inch Body Hex Size; 0.88 Inch Nut Hex Size; Nut Hex Size 0.88 Inch; Body Hex Size 0.69 Inch; RoHS Compliant; SP2 Model
• Made In Usa: Yes
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Bar To Flat Surface Post
• Unspsc: 46182103
• UPC 12 Digit: 074983716654
• SKU Name: pand sp22c
