Blackburn PC250 4Awg ClAMP

Overview

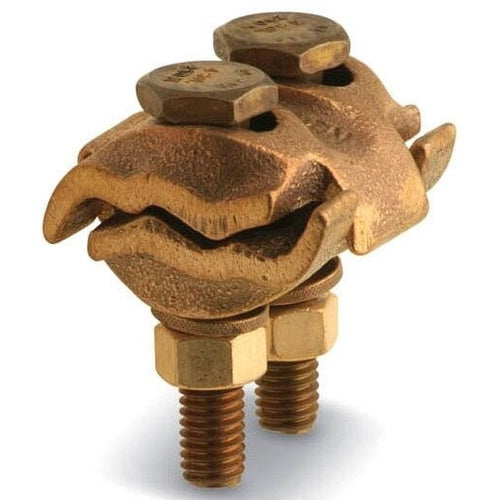

Blackburn PC250 4Awg Clamp

Product Specifications

• UPC: 78378684971
• Additional Information: OVERALL DIMENSION 2-5/16 INCH H
• Catalog Number: PC250
• Model: PC
• Installation: PARALLEL GROOVE, TWO HEX HEAD BOLT WITH SQUARE SHANK, SPRING WASHER
• Minimum Run Conductor Size: 4 AWG SOLID
• Maximum Run Conductor Size: 250 KCMIL STRANDED
• Minimum Tap Conductor Size: 4 AWG SOLID
• Maximum Tap Conductor Size: 250 KCMIL STRANDED
• Material: COPPER ALLOY BODY, SILICON BRONZE BOLT/WASHER
• Catalog Description: COPPER TYPE PC - TWO BOLT PARALLEL GROVE CLAMP FOR WIRE RANGE MAIN: 4 SOLID - 250 STRANDED, TAP: 4 SOLID - 250 STRANDED. HEX-HEAD 3/8 INCH BOLTS. OVERALL BOLT LENGTH 2-5/16 INCHES. BODY 2 INCHES X 1-3/4 INCHES.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Alloy Body, Silicon Bronze Bolt/Washer Material; 4 AWG Solid min. Run Conductor Size; 250 kcmil Stranded Max. Run Conductor Size; 4 AWG Solid min. Tap Conductor Size; 250 kcmil Stranded Max. Tap Conductor Size; Parallel Groove, Two Hex Head Bolt With Square Shank, Spring Washer Installation; Overall Dimension 2-5/16 Inch H; PC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786849710
• SKU Name: pc250 blackburn

Resources

• Manufacturer Spec Sheet
