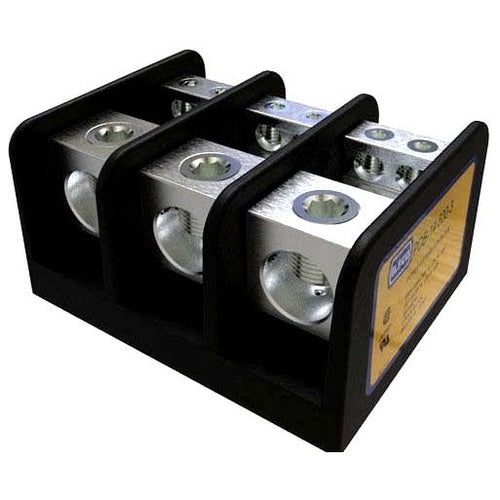

ILSCO PDB-14-500-3 Power Distribution Block

Overview

Ilsco PDB-14-500-3 Power Distribution Block

Product Specifications

• UPC: 78366971114
• Primary Opening Wire Size: 4 AWG to 500 KCMIL
• Number Of Secondary Openings Per Pole: 4
• Secondary Opening Wire Size: 14 to 2/0 AWG
• Conductor Material: Copper/Aluminum
• Size: 5 Inch Width x 4 Inch Depth x 2-5/8 Inch Height
• Temperature Rating: 90 Deg C
• Connector Material: Electro-Tin Plated 6061-T6 Aluminum Alloy
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Hex Size 3/8 Inch (Primary), 3/16 Inch (Secondary)
• Catalog Number: PDB-14-500-3
• Brand Name: Valox[R]
• Model: PDB
• Type: Standard
• Voltage Rating: 600 Volt
• Current Rating: 380 Amp
• Number Of Poles: 3
• Number Of Primary Openings Per Pole: 1
• Catalog Description: POWER DISTRIBUTION BLOCK, DUAL RATED, LINE CONDUCTOR RANGE 500-4, LOAD RANGE 2/0-14, 1 PORT PER POLE LINE SIDE, 4 PORTS PER POLE LOAD SIDE, 3 POLE, UL, CSA
• Category: Terminal Blocks & Accessories
• Full Technical Description: Standard Type; 5 Inch Width X 4 Inch Depth X 2-5/8 Inch Height Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 600 Volt Voltage Rating; 380 Amp Current Rating; 90 Deg C Temperature Rating; 3 Pole(S); Electro-Tin Plated 6061-T6 Aluminum Alloy Connector Material; 14 to 2/0 AWG Secondary Opening Wire Size; 4 AWG to 500 kcmil Primary Opening Wire Size; 4 Secondary Openings Per Pole; 1 Primary Openings Per Pole; Valox [R] Brand; RoHS Compliant; Hex Size 3/8 Inch (Primary), 3/16 Inch (Secondary); PDB Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Power Distribution Block
• Unspsc: 39121408
• UPC 12 Digit: 783669711141
• SKU Name: pdb145003 ilsco
