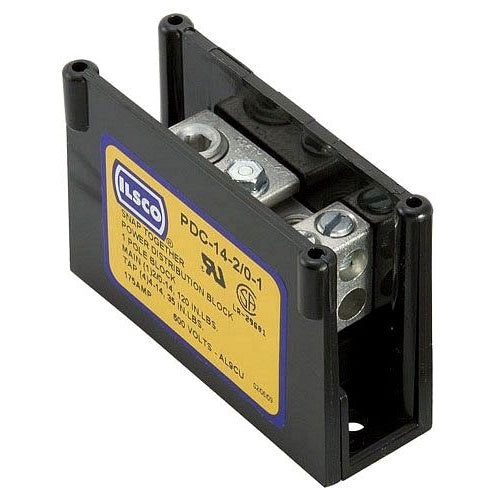

ILSCO PDC-14-2/0-1 Power Distribution Block

Overview

Ilsco PDC-14-2/0-1 Power Distribution Block

Product Specifications

• UPC: 78366971128
• Number Of Secondary Openings Per Pole: 4
• Secondary Opening Wire Size: 14 to 4 AWG
• Conductor Material: Aluminum/Copper
• Size: 1.05 Inch L x 2.88 Inch W x 1.94 Inch H
• Temperature Rating: 90 Deg C
• Connector Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Approval: UL 1059, CSA
• Additional Information: Hex Size 3/16 Inch (Primary), Slot (Secondary)
• Catalog Number: PDC-14-2/0-1
• Model: PDC
• Type: Modular
• Voltage Rating: 600 V
• Current Rating: 175 Ampere
• Number Of Poles: 1
• Number Of Primary Openings Per Pole: 1
• Primary Opening Wire Size: 14 to 2/0 AWG
• Catalog Description: POWER DISTRIBUTION BLOCK, MODULAR DESIGN, DUAL RATED, LINE CONDUCTOR RANGE 2/0-14, LOAD RANGE 4-14, 1 PORT PER POLE LINE SIDE, 4 PORTS PER POLE LOAD SIDE, 1 POLE, UL, CSA
• Category: Terminal Blocks & Accessories
• Full Technical Description: Modular Type; 1.05 Inch L X 2.88 Inch W X 1.94 Inch H Size; Aluminum/Copper Conductor Material; UL 1059, CSA Approval; 600 V Voltage Rating; 175 Ampere Current Rating; 90 Deg C Temperature Rating; 1 Pole(S); Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy Connector Material; 14 to 4 AWG Secondary Opening Wire Size; 14 to 2/0 AWG Primary Opening Wire Size; 4 Secondary Openings Per Pole; 1 Primary Openings Per Pole; Hex Size 3/16 Inch (Primary), Slot (Secondary); PDC Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Power Distribution Block
• Unspsc: 39121408
• UPC 12 Digit: 783669711288
• SKU Name: pdc142/01 ilsco
