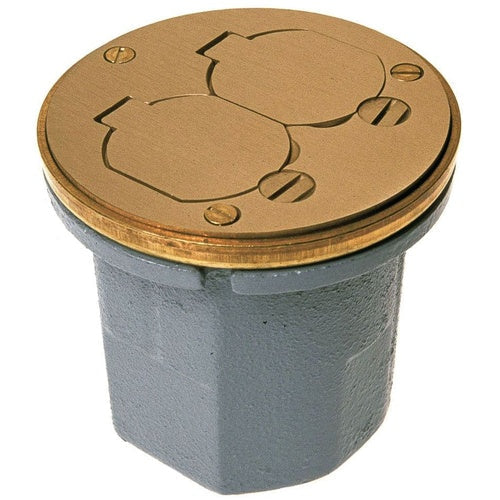

Raco 6224 Brass Floor Box

Overview

Raco 6224 Brass Floor Box

Product Specifications

• UPC: 05016906224
• Knockout Size: (2) 1/2 Inch Bottom
• Number Of Gangs: 1
• Service Type: Flush
• Capacity: 18.5 Cubic Inch
• Installation: Wood Floor
• Device Capacity: (2) Duplex Receptacle
• Hub Size: (2) 1/2 Inch Bottom
• Number Of Hubs: 2
• Device Mounting Holes: Threaded
• Standard Package: 4 per Carton
• Catalog Number: 6224
• Approval: UL (Canada and US), UL, CSA
• Additional Information: Cover Size 4.19 Inch Diameter; Finish Brass; Includes Box, Duplex Cover with Lift Lids, Brass Tile Flange
• Type: Non-Adjustable
• Shape: Round
• Height: 3.75 Inch
• Width: 4.19 Inch
• Material: Gray Powder Coat Painted Cast Iron
• Mounting: Carpet/Tile Mount
• Number Of Knockouts: 2
• Catalog Description: DUPLEX RECEPTACLE ASSEMBLY FOR WOOD SUB FLOORS
• Category: Floor Boxes & Accessories
• Full Technical Description: Non-Adjustable Type; Cast Iron, Brass Material; Round Shape; Wood Floor Installation; UL (Canada and Us) Approval; 4 Per Carton Standard Package; 18.5 Cubic Inch Capacity; Duplex Receptacle Device Capacity; Application Concrete, Tile, Wood
• Made In Usa: Yes
• Manufacturer: RACO INC
• Manufacturer Brand: RACO, Inc.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
• Sub Category: Floor Box Assembly
• Unspsc: 39121307
• UPC 12 Digit: 050169062241
• SKU Name: raco 6224

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
